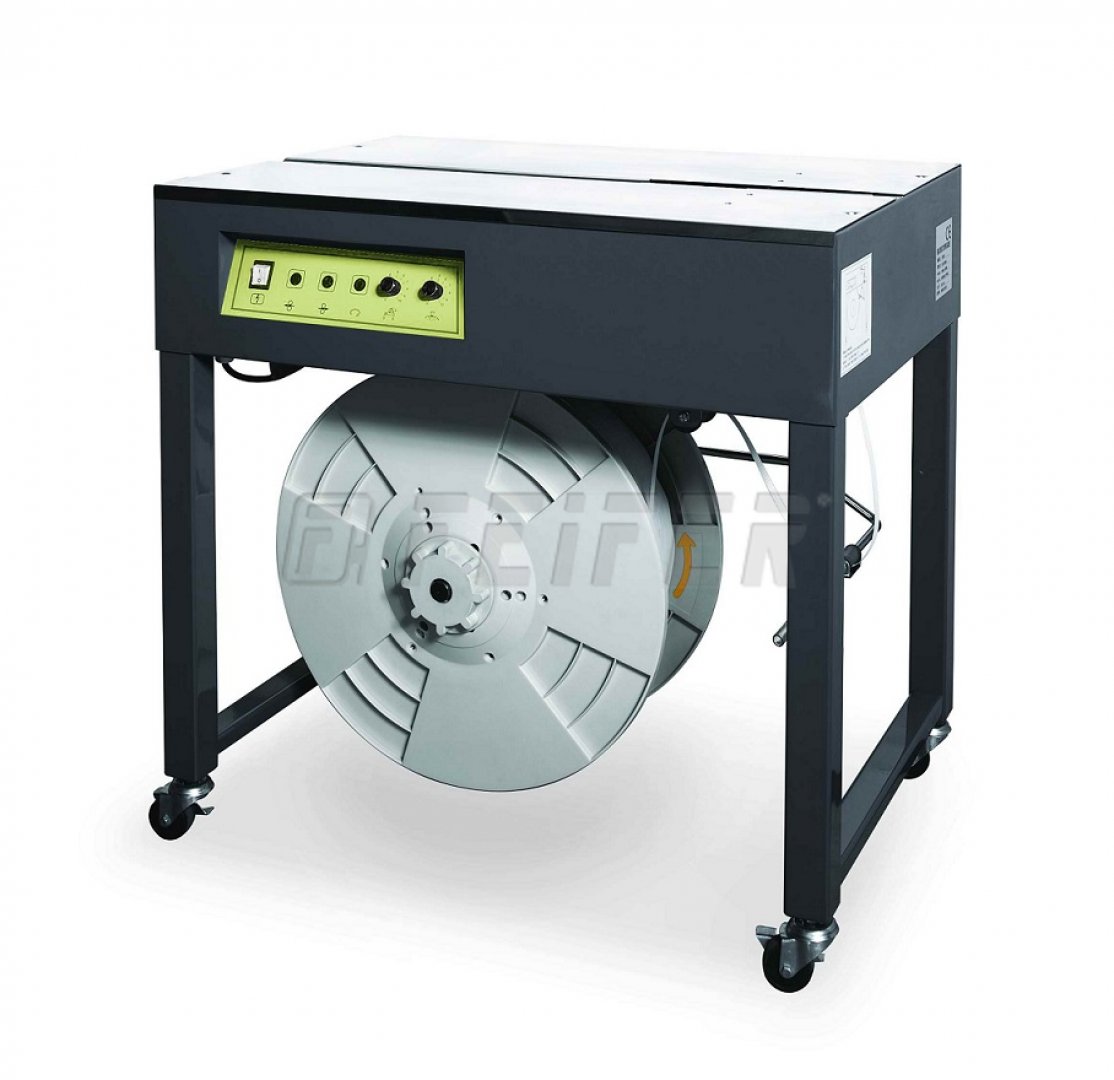

TP-205 - semi-automatic strapping machine

This strapping machine TP-205 has a wide use, it is suitable for strapping (with PP or foam strap) cartons, banknotes, newspapers, but as well as for furniture, can be used for strapping circular objects (e.g. hoses, cables, tires, etc.).

Among main advantages of this strapping machine belong:

  • power operated robust mechanics  - much fewer spare parts, long life time of the machine
  • easy operation as well as maintenance
  • reliability
  • universal usage
  • electromagnetic clutch of cycles stepping
  • ajustable tightening power

The machine works with strap of the width of 5,5 - 15 mm with inner diameter of coil of 200 mm.

Technical parameters
Modification
Packing material
Inquiry

Technical parameters

ordering code 700 012497
supply voltage 230V/50Hz
power input 0,2 kW
strap - material PP
strap width 5,5 - 15 mm
weight 63 kg
dimension (l x w x h) 780 x 550 x 750 mm
inner diameter of roll 200 mm
packing rate 15 straps/min.
tightening power 20 - 550 N

Standard modifications

TP-206 - MINIPACK - semi-automatic strapping machine

TP-206 - MINIPACK - semi-automatic strapping machine
  • strap width 5,5 - 15 mm
  • easy operation and maintenance
  • excelent value for money
  • universal use

Binding and packaging materials

PP strap 5,5 x 0,50 mm, 200/190 - 5000 m, 700 N, natural (white)

PP strap 5,5 x 0,50 mm, 200/190 - 5000 m, 700 N, natural (white)
  • width 5,5 mm, thickness 0,50 mm
  • natural color (white)
  • strenght 700 N
  • tube 200 mm, roll 5000 m

PP strap 6 x 0,55 mm, 200/190 - 5500 m, 750 N, green

PP strap 6 x 0,55 mm, 200/190 - 5500 m, 750 N, green
  • width 6 mm, thickness 0,55 mm
  • green color
  • strenght 750 N
  • tube 200 mm, roll 5500 m

PP strap 8 x 0,55 mm, 200/190 - 4500 m, 950 N, black

PP strap 8 x 0,55 mm, 200/190 - 4500 m, 950 N, black
  • width 8 mm, thickness 0,55 mm
  • black color
  • strenght 950 N
  • tube 200 mm, roll 4500

PP strap 8 x 0,55 mm, 200/190 - 4500 m, 950 N, white

PP strap 8 x 0,55 mm, 200/190 - 4500 m, 950 N, white
  • width 8 mm, thickness 0,55 mm
  • white color
  • strenght 950 N
  • tube 200 mm, roll 4500

PP strap 10 x 0,40 mm, 200/190 - 3500 m, 1160 N, black

PP strap 10 x 0,40 mm, 200/190 - 3500 m, 1160 N, black
  • width 10 mm, thickness 0,40 mm
  • black color
  • strenght 1160 N
  • tube 200 mm, roll 3500 m

PP strap 10 x 0,40 mm, 200/190 - 3500 m, 1160 N, natural (white)

PP strap 10 x 0,40 mm, 200/190 - 3500 m, 1160 N, natural (white)
  • width 10 mm, thickness 0,40 mm
  • natural color (white)
  • strenght 1160 N
  • tube 200 mm, roll 3500 m

PP strap 12 x 0,50 mm, 200/190 - 3100 m, 1300 N, black

PP strap 12 x 0,50 mm, 200/190 - 3100 m, 1300 N, black
  • width 12 mm, thickness 0,50 mm
  • black color
  • strenght 1300 N
  • tube 200 mm, roll 3100 m

PP strap 12 x 0,55 mm, 200/190 - 3000 m, 1500 N, black

PP strap 12 x 0,55 mm, 200/190 - 3000 m, 1500 N, black
  • width 12 mm, thickness 0,55 mm
  • black color
  • strenght 1500 N
  • tube 200 mm, roll 3000 m

PP strap 12 x 0,55 mm, 200/190 - 3000 m, 1500 N, white

PP strap 12 x 0,55 mm, 200/190 - 3000 m, 1500 N, white
  • width 12 mm, thickness 0,55 mm
  • natural color (white)
  • strenght 1500 N
  • tube 200 mm, roll 3000 m

PP strap 12 x 0,70 mm, 200/190 - 2500 m, 2200 N, black

PP strap 12 x 0,70 mm, 200/190 - 2500 m, 2200 N, black
  • width 12 mm, thickness 0,70 mm
  • black color
  • strenght 2200 N
  • tube 200 mm, roll 2500 m

PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200N, black

PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200N, black
  • width 15 mm, thickness 0,65 mm
  • black color
  • strenght 2200 N
  • tube 200, roll 2000 m

PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200 N, white

PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200 N, white
  • width 15 mm, thickness 0,65 mm
  • white, cross strapped
  • strenght 2200 N
  • tube 200, roll 2000 m
