TP-158 FORTE - automatic PP strapping machine
This strapping machine TP-158 is intended for strapping (with PP strap) e.g. cartons, textile products. It is designed for medium or high frequency strapping jobs.
Among main advantages of this strapping machine belong:
- good strapping frequency
- easy operation
- reliability
- excelent value for money
- semi-automatic or automatic working mode
- a compact arch

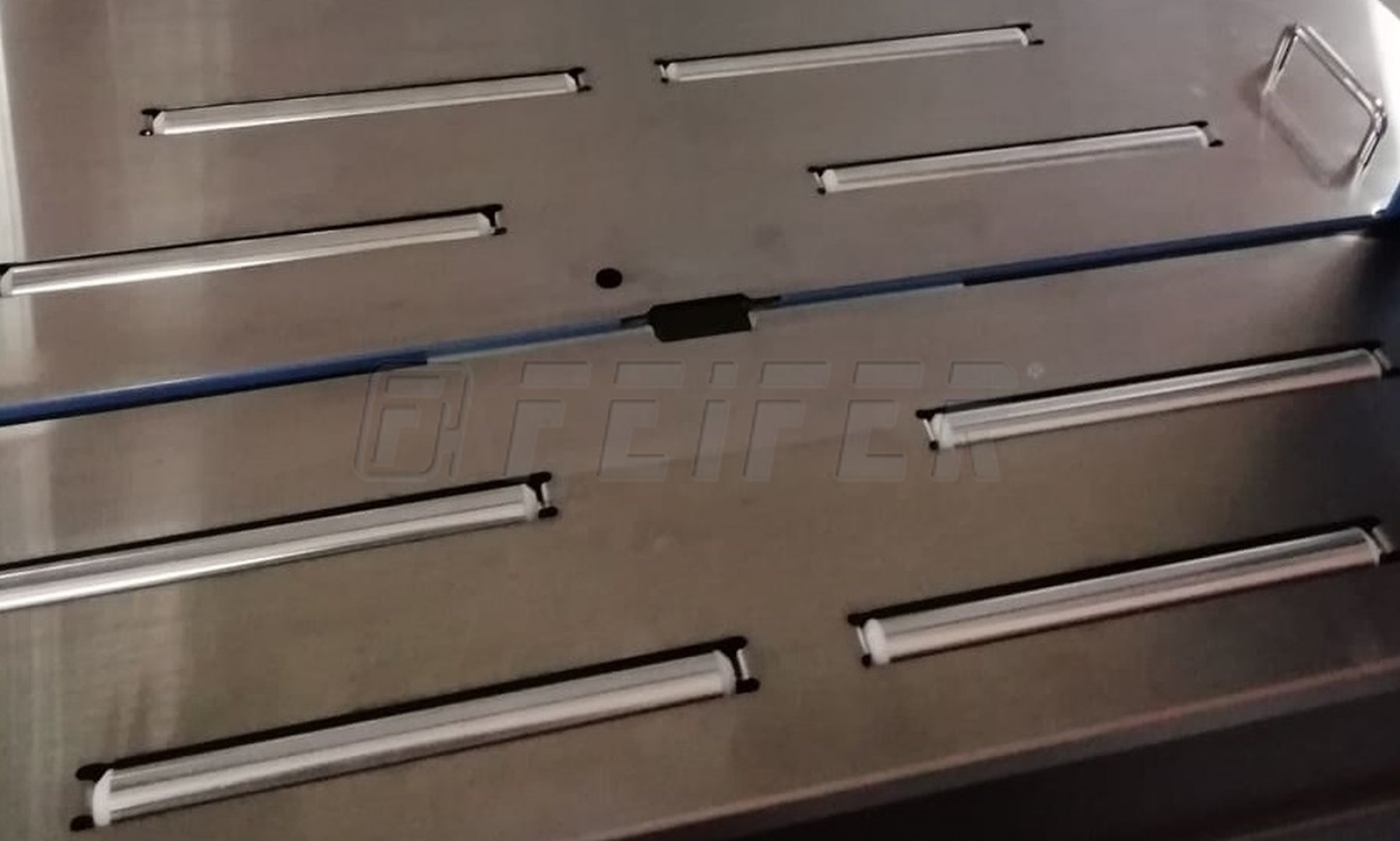

- equipped with working table with built-in rollers, which make easy operation with strapping object

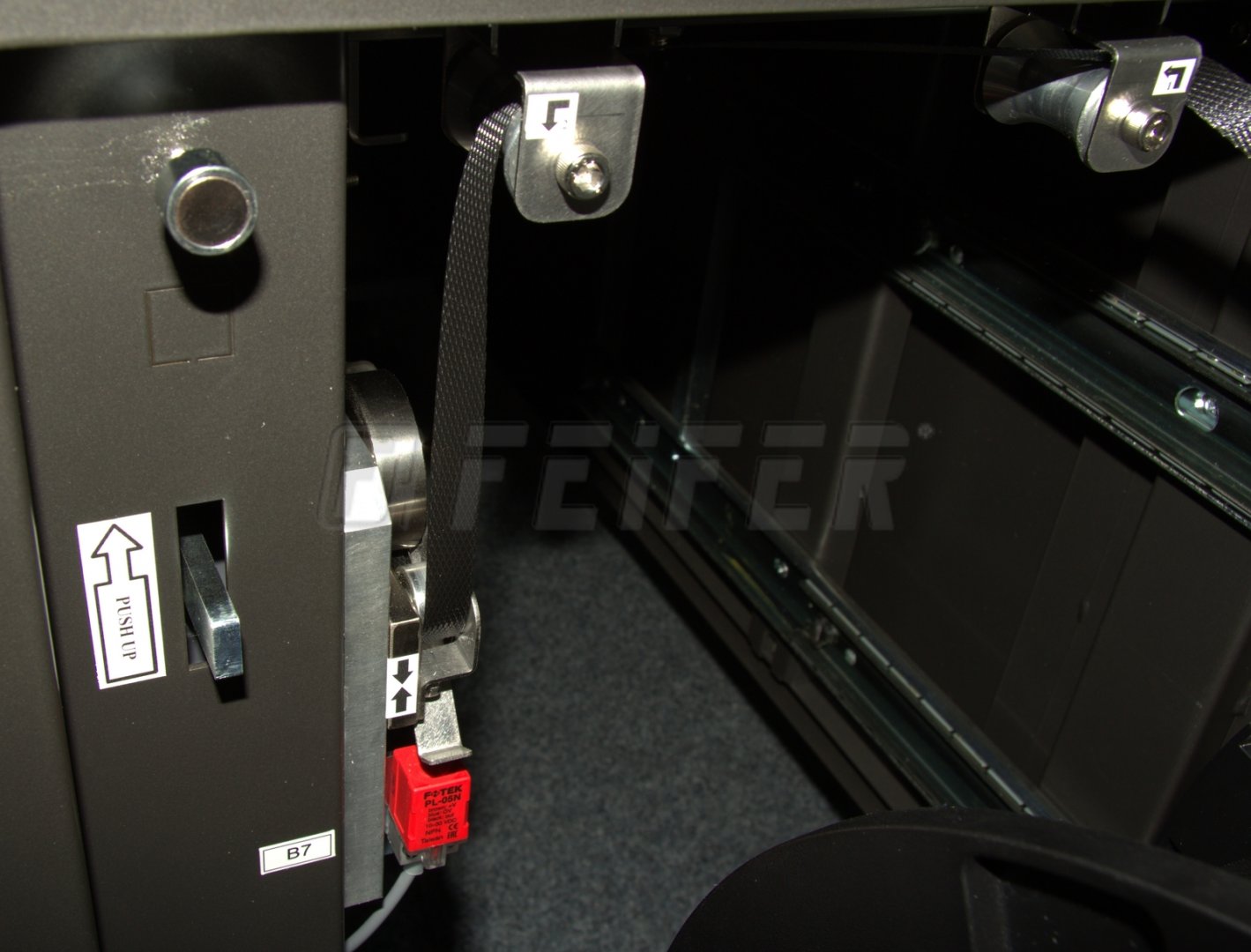

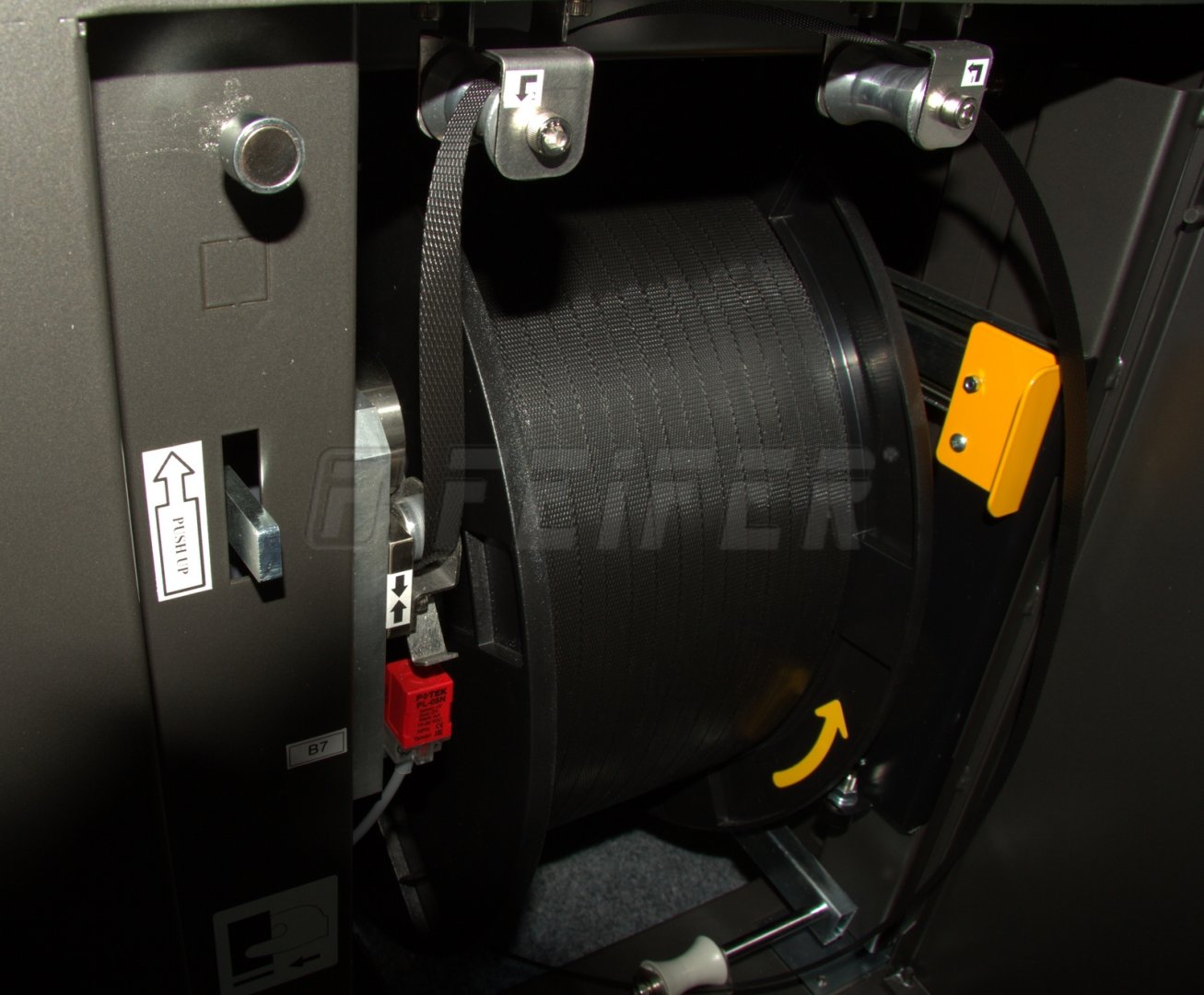

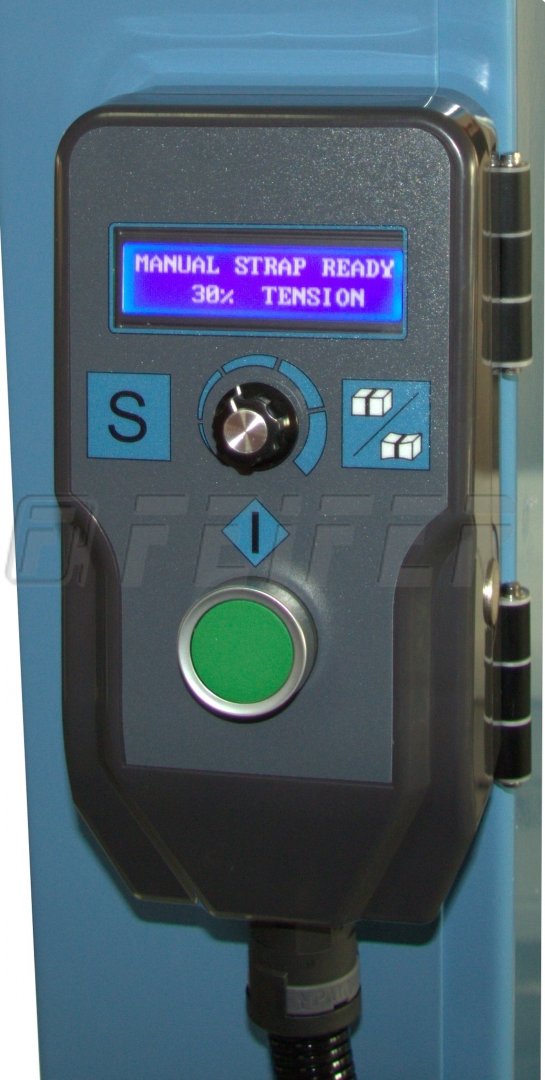

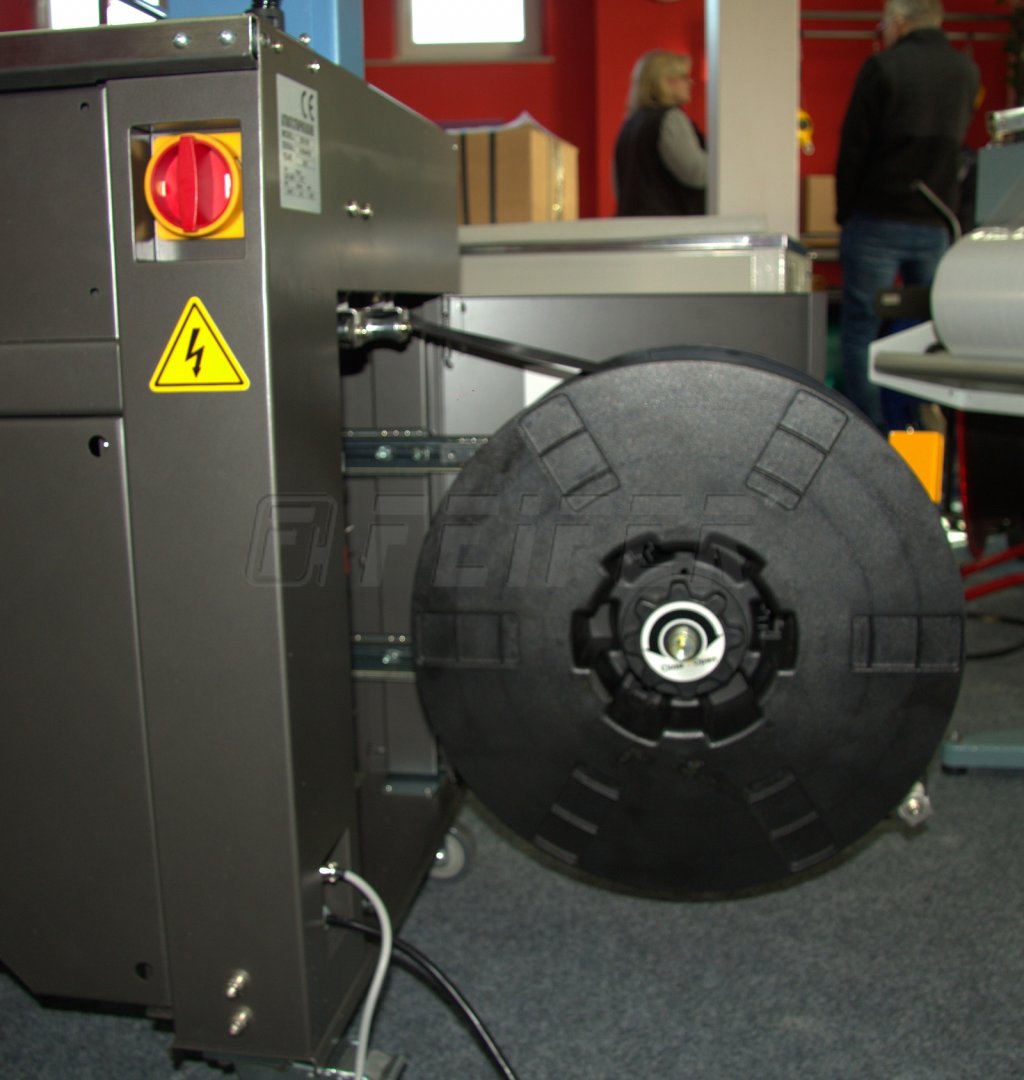

The machine works with strap of the width of 8 - 12, 15 (16) mm with thickness 0,5 – 0,75 mm. Tightening power is adjustable. Acoustic signal informs the operator about depletion of tape on spool. In standard version is equipped with fully covered strap decoiler.
Technical parameters
Packing material
Soubory k produktu
Inquiry
Technical parameters
| ordering code | 700 022878 |
| supply voltage | 230V/50Hz |
| power input | 0,6 kW |
| strap - material |
PP |
| strap width | 8 - 12, 15 (16) mm |
| strap thickness | 0,5 - 0,75 mm |
| weight | 142 kg |
| inner diameter of roll | 200 mm |
| packing rate | 37 straps/min. |

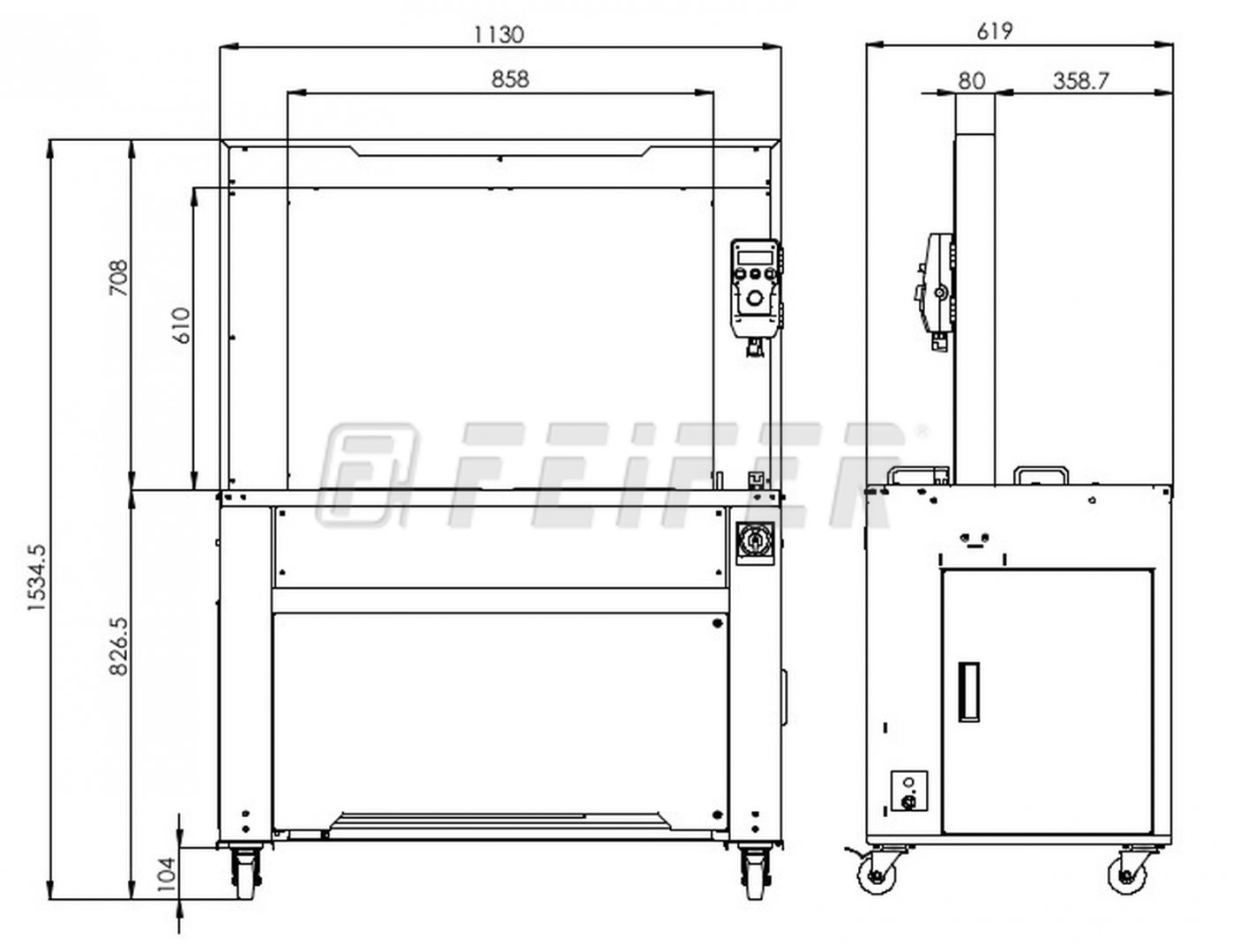

| arch width | 850 mm |
| arch height | 600 mm |
Standard modifications
Binding and packaging materials
PP strap 12 x 0,50 mm, 200/190 - 3100 m, 1300 N, black
- width 12 mm, thickness 0,50 mm
- black color
- strength 1300 N
- tube 200 mm, roll 3100 m
PP strap 12 x 0,55 mm, 200/190 - 3000 m, 1500 N, black
- width 12 mm, thickness 0,55 mm
- black color
- strength 1500 N
- tube 200 mm, roll 3000 m
PP strap 12 x 0,55 mm, 200/190 - 3000 m, 1500 N, white
- width 12 mm, thickness 0,55 mm
- natural color (white)
- strength 1500 N
- tube 200 mm, roll 3000 m
PP strap 12 x 0,70 mm, 200/190 - 2500 m, 2200 N, black
- width 12 mm, thickness 0,70 mm
- black color
- strength 2200 N
- tube 200 mm, roll 2500 m
PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200N, black
- width 15 mm, thickness 0,65 mm
- black color
- strength 2200 N
- tube 200, roll 2000 m
PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200 N, white
- width 15 mm, thickness 0,65 mm
- white, cross strapped
- strength 2200 N
- tube 200, roll 2000 m
