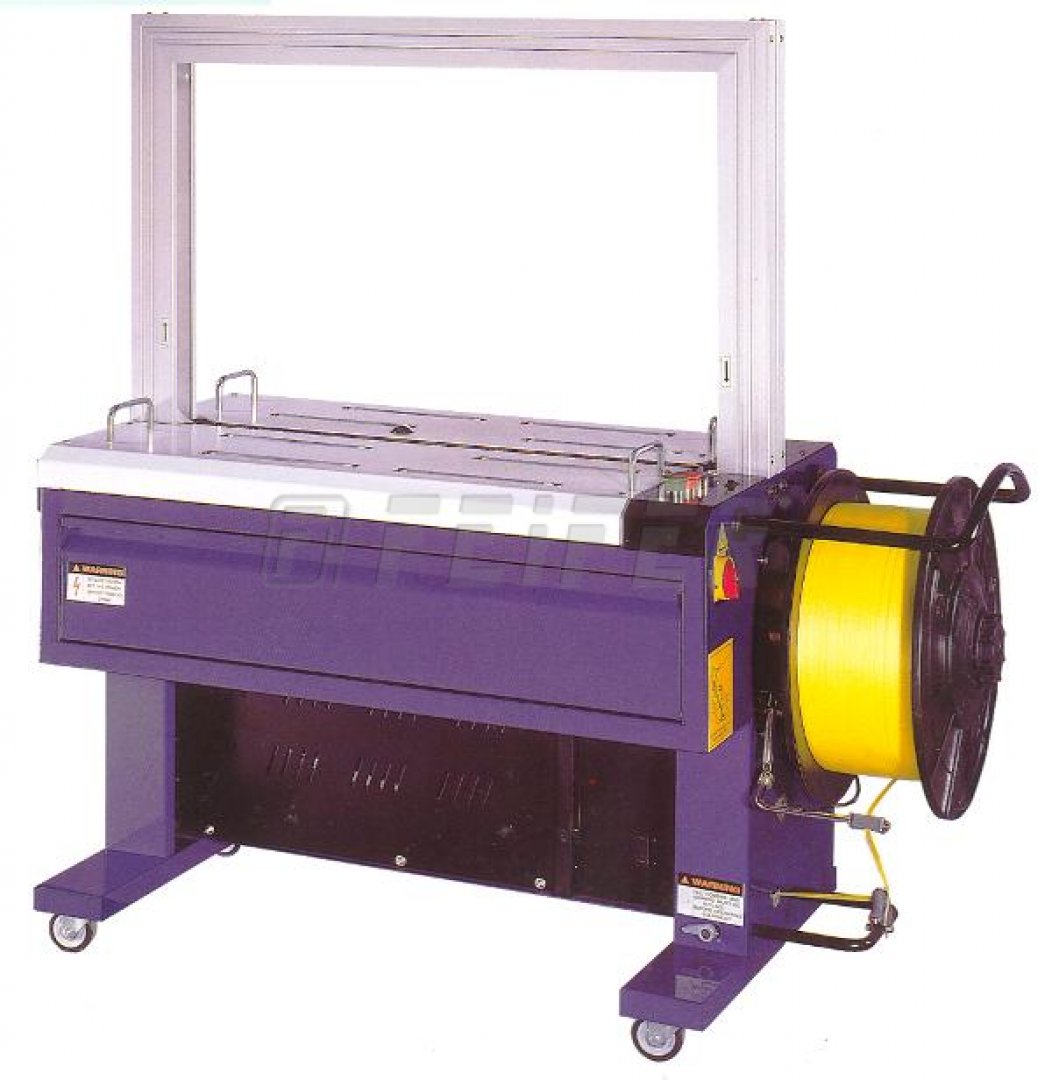

TP-108 FORTE - automatic strapping machine

This strapping machine TP-108 FORTE is intended for strapping (with PP strap) e.g. cartons, textile products, etc.



Among main advantages of this strapping machine belong:

  • good strapping frequency
  • easy operation
  • reliability
  • excellent value for money
  • adjustable tightening power



The machine is able to work in semi-automatic or automatic working mode and works with strap of the width of 15 - 15,5 mm with inner diameter of coil of 200 mm. The machine is equipped with working table with built-in rollers, which make easy operation with strapping object.

Technical parameters
Packing material
Inquiry

Technical parameters

ordering code 700 001167
supply voltage 230V/50Hz
power input 1,0 kW
strap - material PP
strap width 10 - 12/15 mm
weight 230 kg
dimension (l x w x h) 650 x 1450 x 1500 mm
inner diameter of roll 200 mm
packing rate 27 straps/min.
arch width 850 mm
arch height 600 mm

Standard modifications

Binding and packaging materials

PP strap 10 x 0,40 mm, 200/190 - 3500 m, 1160 N, black

PP strap 10 x 0,40 mm, 200/190 - 3500 m, 1160 N, black
  • width 10 mm, thickness 0,40 mm
  • black color
  • strenght 1160 N
  • tube 200 mm, roll 3500 m

PP strap 10 x 0,40 mm, 200/190 - 3500 m, 1160 N, natural (white)

PP strap 10 x 0,40 mm, 200/190 - 3500 m, 1160 N, natural (white)
  • width 10 mm, thickness 0,40 mm
  • natural color (white)
  • strenght 1160 N
  • tube 200 mm, roll 3500 m

PP strap 12 x 0,50 mm, 200/190 - 3100 m, 1300 N, black

PP strap 12 x 0,50 mm, 200/190 - 3100 m, 1300 N, black
  • width 12 mm, thickness 0,50 mm
  • black color
  • strenght 1300 N
  • tube 200 mm, roll 3100 m

PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200 N, white

PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200 N, white
  • width 15 mm, thickness 0,65 mm
  • white, cross strapped
  • strenght 2200 N
  • tube 200, roll 2000 m

PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200N, black

PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200N, black
  • width 15 mm, thickness 0,65 mm
  • black color
  • strenght 2200 N
  • tube 200, roll 2000 m
