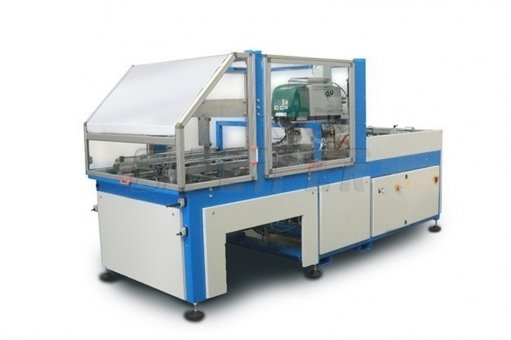

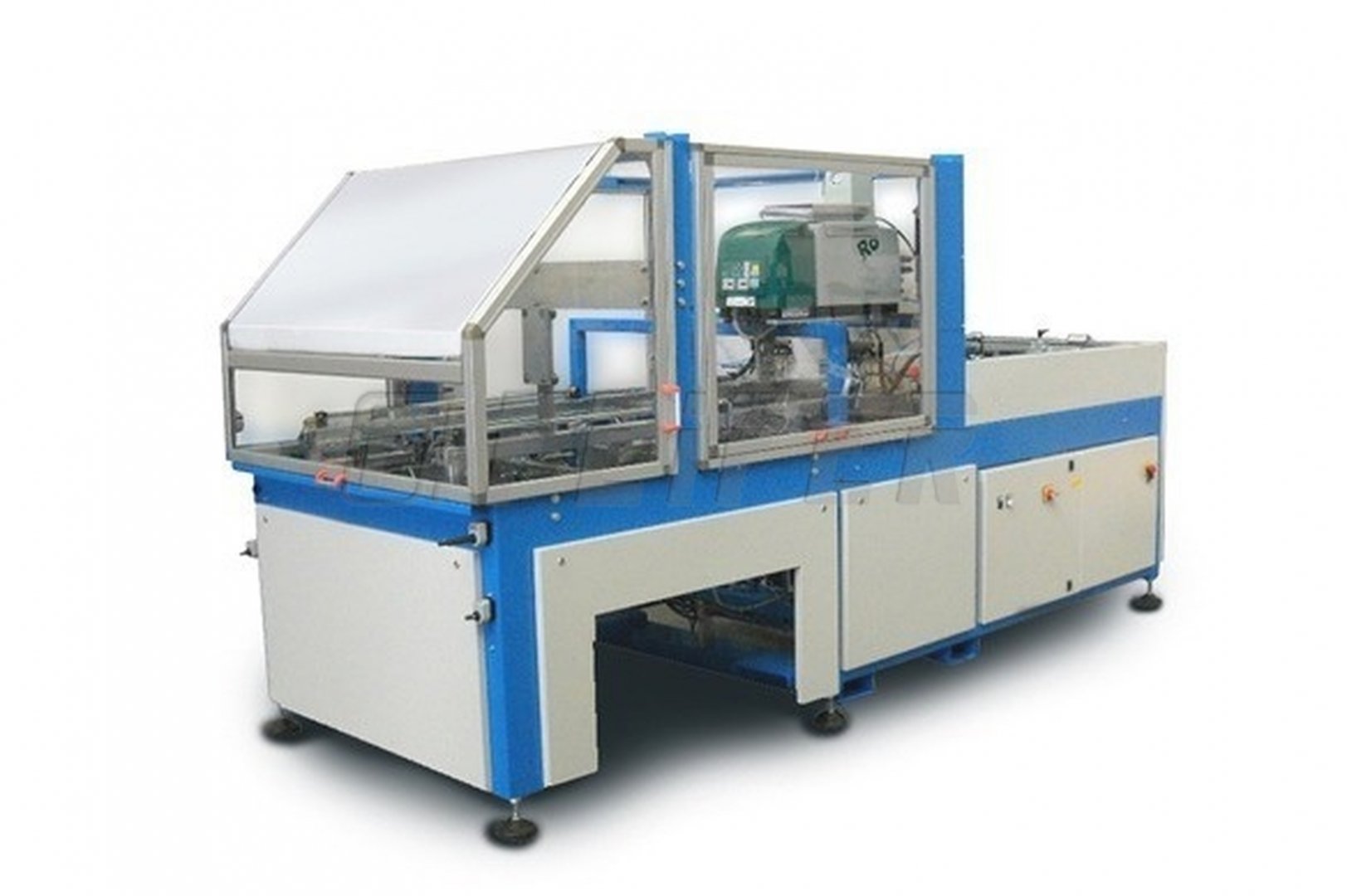

TECO T2N - automatic formatting machine

TECO T2N automatic formatting machine is used for the production of cardboard packaging of the "tray" type, with or without a lid. The machine removes semi-finished products (cuts) from the bin using vacuum suction cups. During the forward movement, hot glue is applied to the edges of the semi-finished product by nozzles, and then the cut-out is pressed into the mould and formed into the final shape. The exit direction of the finished packages can be adjusted - straight or to both sides.



Advantages of the machine:

  • robust and proven construction
  • adaptable to different types of tray boxes, with or without lids
  • simple operation via touch screen
  • quick change of the size of the folded tray - up to 2 min
  • 2 nozzles for glue application - ROBATECH system.



Extra equipment and modification:

  • IM04 automatic stacker with ejection
  • automatic glue feeding system
  • roller conveyor
  • additional mandrel
  • system for double folding of cardboard on the long side
  • system for double folding of cardboard on the short side (without additional nozzle)
  • semi-automatic feed belt
  • fully automatic feeder
  • NORDSON gluing system
Technical parameters
Inquiry

Technical parameters

ordering code 700 024423
machine capacity 30-40 pcs/min
supply voltage 400V/50 Hz/3f
power input 6,7 kW
compressed air 5-6 bar
air consumption 40 m3/h
weight 1300 kg

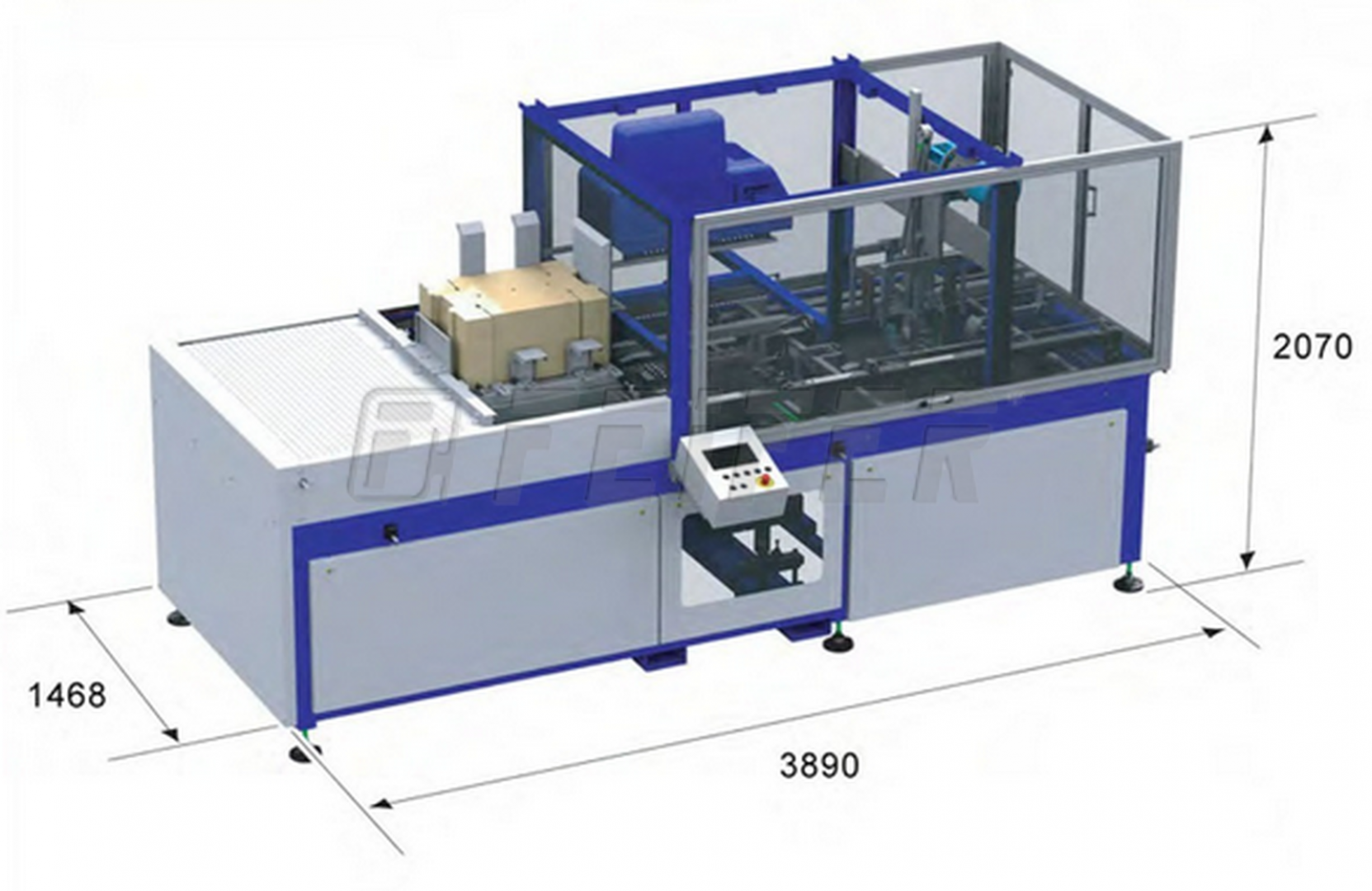

dimension (l x w x h) 3890 x 1468 x 2070 mm
magazine 150 pcs

Standard modifications
