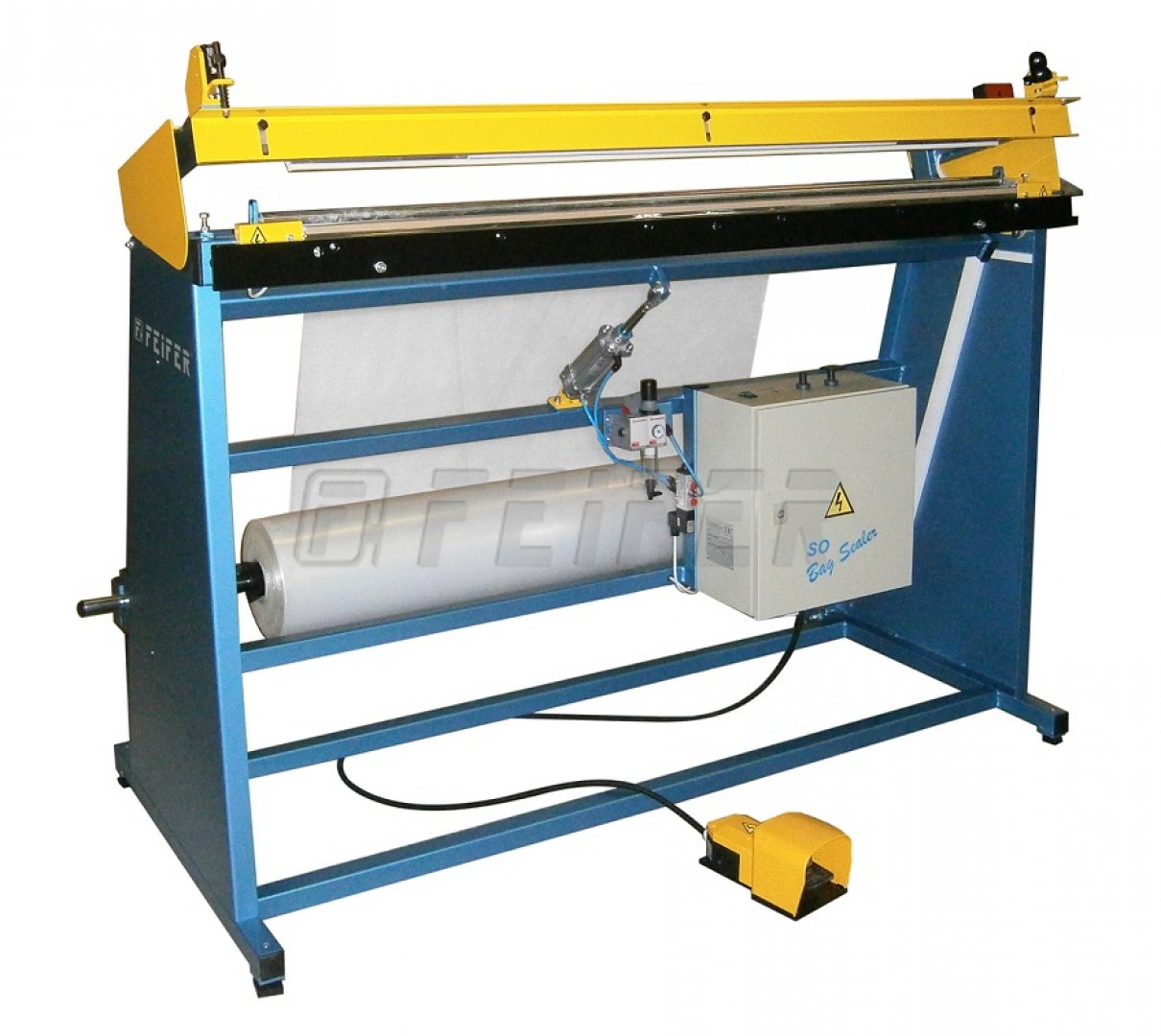

SO-140PN - industrial impulse sealer

Industrial heavy-duty impulse sealer with built-in cutting blade are designed for producing and closing film bags. There are used for packaging heat shrink sleeve films (PE, PVC, PP, POF,...). Max. sealing lenght is 600 - 2050 mm. Seal is performed by 4 or 6 mm wide sealing blade. The sealer has a high security service - the blade is retracted after pressing the upper jaw to the bottom.



Sealing arm holding is mechanical in standard (models F) or for additional charge pneumatic (models PN).



Among main advantages of this sealer belong:

  • impulse sealing
  • foot control
  • built-in cutter
  • adjustable sealing time
  • thermistor - thermal protection of transformer
  • low operating costs, minimal maintenance



These industrial impulse sealers are intended for low/medium packaging frequency.



This type SO-140PN is intended for sealing length of 1400 mm and is equipped with mechanical closing and holding sealing arm.

Technical parameters
Modification
Spare part
Inquiry

Technical parameters

ordering code 600 000210
material - foil PE
PVC
PP
POF
roll type sleeve
max. sealing length 1400 mm
sealing width 6, popř. 4 mm
sealing time 0 - 5 s
power input 1,6 kW
supply voltage 230V/50Hz
weight 120 kg

Standard modifications

SO-60F - industrial impulse sealer

SO-60F - industrial impulse sealer
  • sealing length 600 mm
  • heavy duty impulse sealer
  • sealing width 6 or 4 mm
  • mechanical sealing arm

SO-80F - industrial impulse sealer

SO-80F - industrial impulse sealer
  • sealing length 800 mm
  • heavy duty impulse sealer
  • sealing width 6 or 4 mm
  • mechanical sealing arm

SO-100F - industrial impulse sealer

SO-100F - industrial impulse sealer
  • sealing length 1000 mm
  • heavy duty impulse sealer
  • sealing width 6 or 4 mm
  • mechanical sealing arm

SO-140F - industrial impulse sealer

SO-140F - industrial impulse sealer
  • sealing length 1400 mm
  • heavy duty impulse sealer
  • sealing width 6 or 4 mm
  • mechanical sealing arm

SO-60PN - industrial impulse sealer

SO-60PN - industrial impulse sealer
  • sealing length 600 mm
  • heavy duty impulse sealer
  • sealing width 6 or 4 mm
  • pneumatic sealing arm

SO-80PN - industrial impulse sealer

SO-80PN - industrial impulse sealer
  • sealing length 800 mm
  • heavy duty impulse sealer
  • sealing width 6 or 4 mm
  • pneumatic sealing arm

SO-100PN - industrial impulse sealer

SO-100PN - industrial impulse sealer
  • sealing length 1000 mm
  • heavy duty impulse sealer
  • sealing width 6 or 4 mm
  • pneumatic sealing arm

SO-180PN - industrial impulse sealer

SO-180PN - industrial impulse sealer
  • sealing length 1800 mm
  • heavy duty impulse sealer
  • sealing width 6 or 4 mm
  • pneumatic sealing arm

SO-205PN - industrial impulse sealer

SO-205PN - industrial impulse sealer
  • sealing length 2050 mm
  • heavy duty impulse sealer
  • sealing width 6 or 4 mm
  • pneumatic sealing arm
