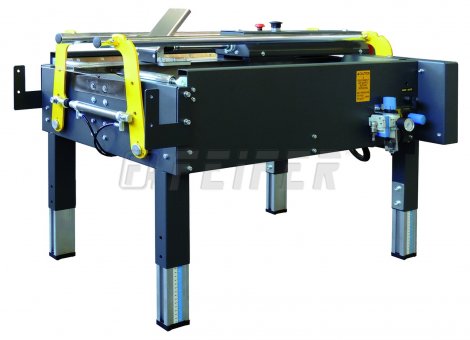

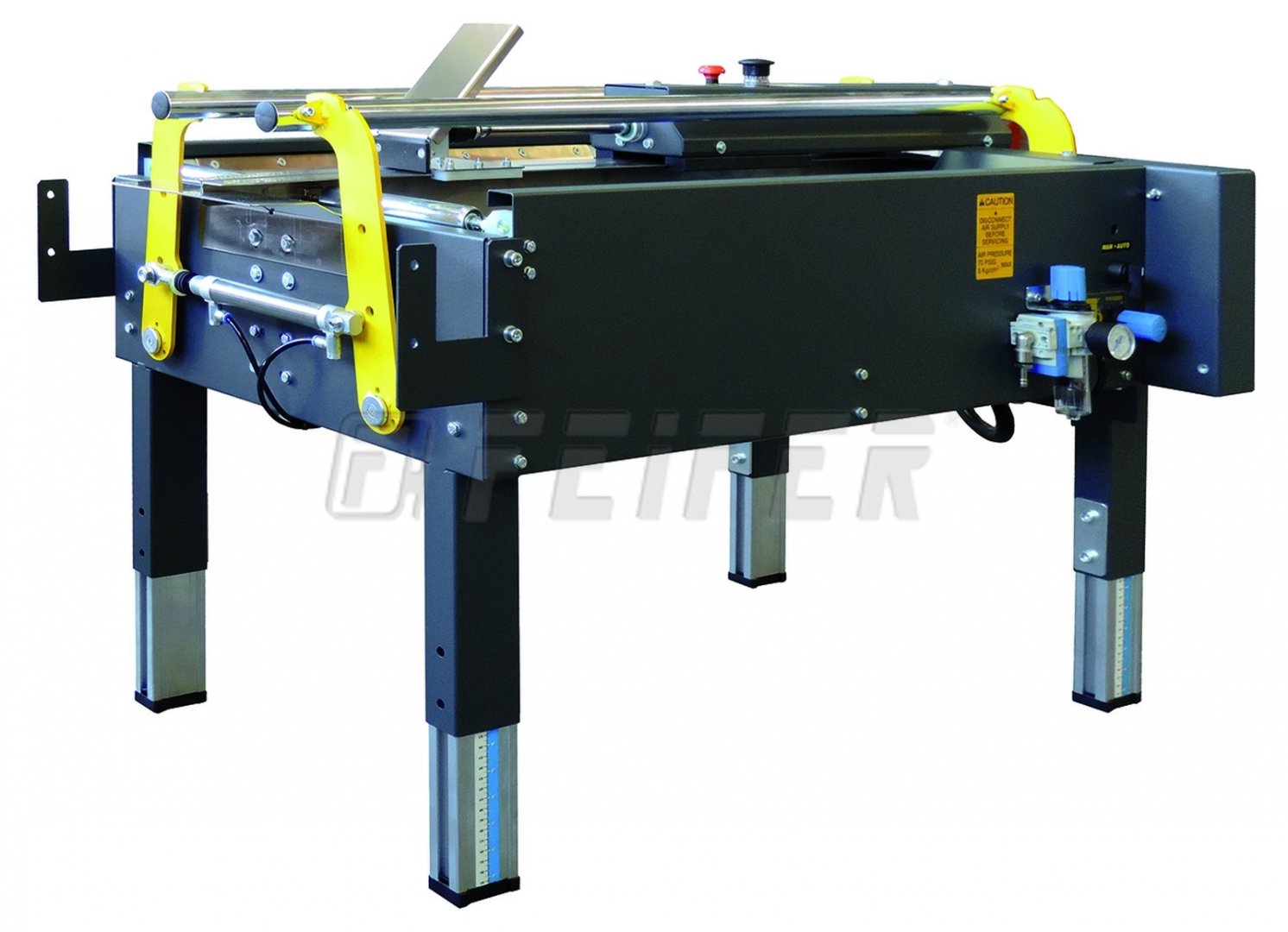

Semi-automatic formatting machine F105 for folding boxes

The semi-automatic formatting machine F105 is used for folding flap boxes. The operator manually inserts the unfolded boxes, the formatting machine automatically folds the lower flaps of the box. The machine does not have the sealing function. The upper flaps remain open, the box ready to be filled. Subsequently, the box is moved into the cardboard sealing machine or onto the conveyor.

* Possibility to choose left or right design.



Advantages of the machine:

  • possibility to set the machine for different lengths of cartons
  • automatic adjustment of the machine according to the width of the carton
  • tray for unfolded cartons in easy reach of the operator
  • mechanism for transferring the carton to the sealing machine or to the conveyor
  • high machine capacity - up to 600 boxes / hour
  • easy to use
  • low machine maintenance requirements



Optional accessories:

  • higher legs for greater variability of working height
  • castors for machine transportation
  • conveyors





Technical parameters
Inquiry

Technical parameters

ordering code 700 024498
min. carton size (l x w x h) 200 x 90 x 90 mm
max. carton size (l x w x h) 600 x 500 x 500 mm
machine capacity až 10 pcs/min
supply voltage 220 V

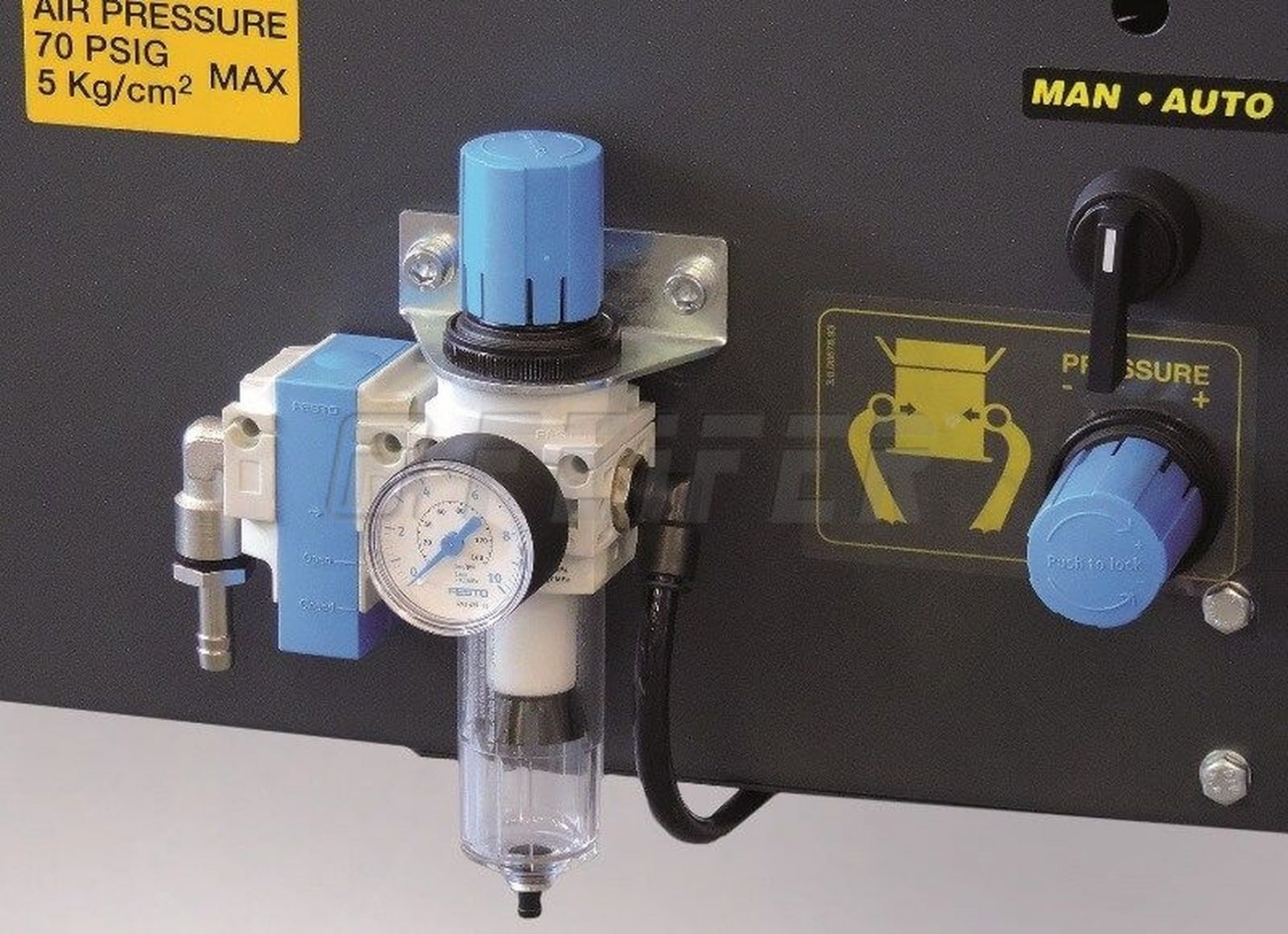

compressed air 5,5-7 bar
dimension (l x w x h) 1660 x 933 x 855 mm
weight 110 kg

Standard modifications
