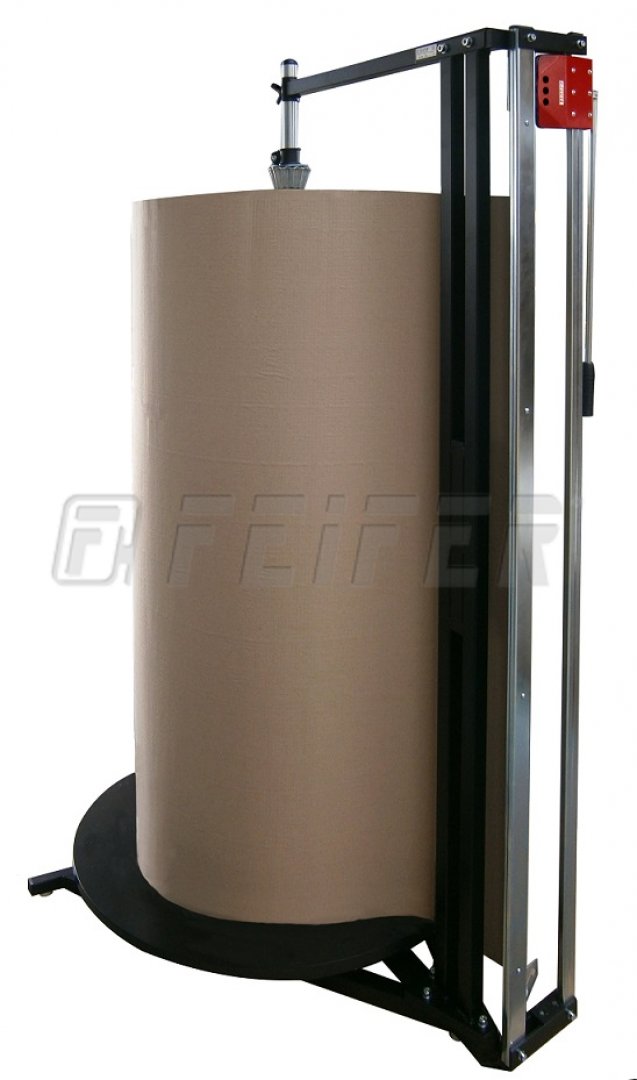

RV-1600 - cutting stand
Cutting stands are suitable accessories for your despatching departments. They can be used for cutting corrugated paper, wrapping paper, PP or PE films, bubble films, foams, etc. A wrapping material gripper and a cutting cassette enable you to cut easily and precisely demanded size of the wrapping material. These cutters are equipped with a universal plane blade, so they can be used for cutting most common materials (paper, corrugated paper, film, PE foam, bubble film...).
The stand is supplied unassembled. The package includes clear instructions for easy assembly.
Non-standard modifications:
- equipped with wheels
- endwise longitudinal cutting
Technical parameters
Modification
Spare part
Inquiry
Technical parameters
| ordering code | 600 000186 |
| max. working width | 1600 mm |
| max. diameter of roll | 900 mm |
| max. roll weight | 80 kg |
| dimension (l x w x h) | 1100 x 1010 x 2050 mm |
| weight | 50 kg |
Standard modifications
RV-1000 - cutting stand
- width 1000 mm
- vertical
- one roll
- for paper and film
RV-1250 - cutting stand
- width 1250mm
- vertical
- one roll
- for paper and film
