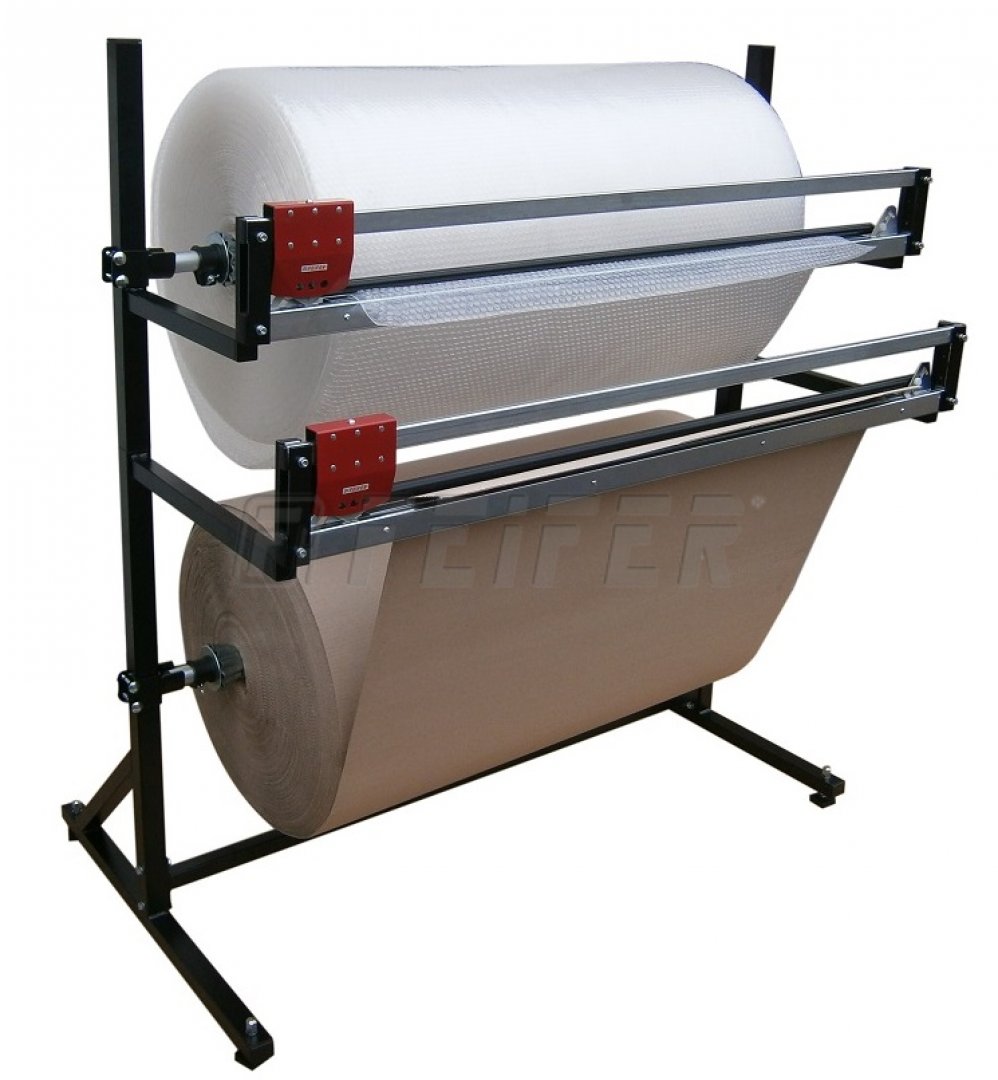

RHD-1600 - cutting stand
Cutting stands are suitable accessories for your despatching departments. They can be used for cutting corrugated paper, wrapping paper, PP or PE films, bubble films, foams, etc. A wrapping material gripper and a cutting cassette enable you to cut easily and precisely demanded size of the wrapping material. These cutters are equipped with a universal plane blade, so they can be used for cutting most common materials (paper, corrugated paper, film, PE foam, bubble film...).
The stand is supplied unassembled. The package includes clear instructions for easy assembly.
Non-standard modifications:
- equipped with wheels
- endwise longitudinal cutting
- special holder for cutting of light materials such as PE foam or bubble foil
Technical parameters
Modification
Accessories
Spare part
Inquiry
Technical parameters
| ordering code | 600 000576 |
| max. working width | 1600 mm |
| max. diameter of roll | 900 mm |
| max. roll weight | 80 kg |
| dimension (l x w x h) | 2000 x 950 x 1500 mm |
| weight | 58 kg |
Standard modifications
RHD-750 - cutting stand
- width 750mm
- horizontal
- two rolls
- for paper and film
RHD-1000 - cutting stand
- width 1000 mm
- horizontal
- two rolls
- for paper and film
RHD-1250 - cutting stand
- width 1250 mm
- horizontal
- two rolls
- for paper and film
