LoadMaster FCB-800 - vehicle loading conveyor

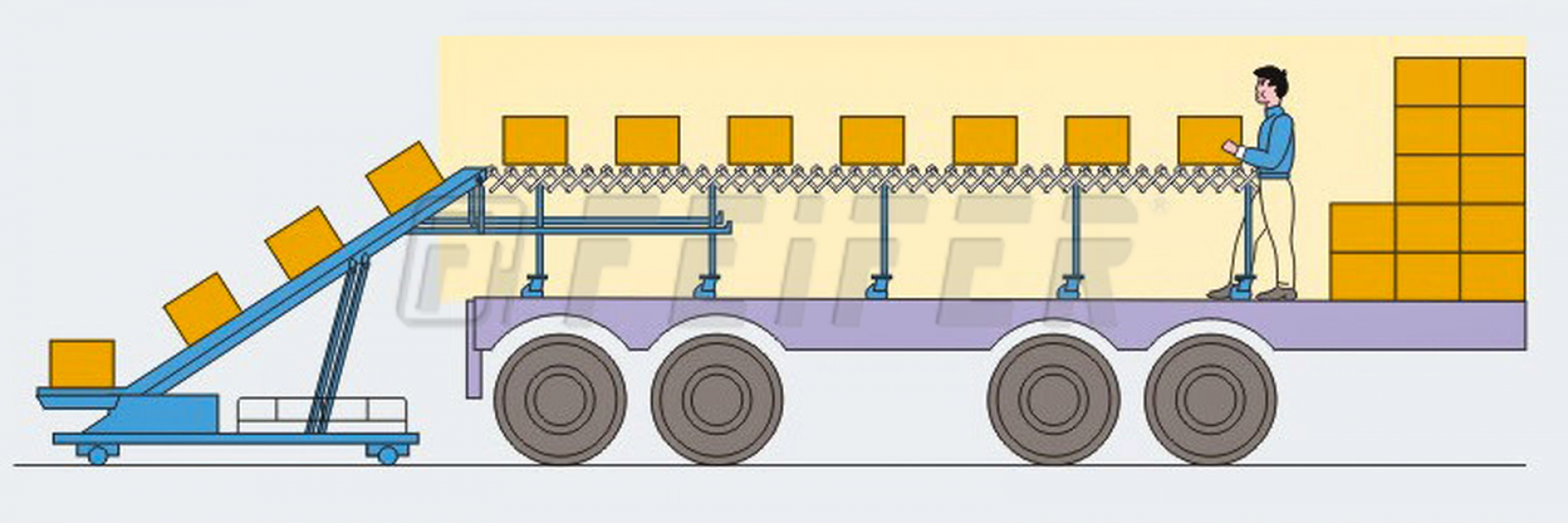

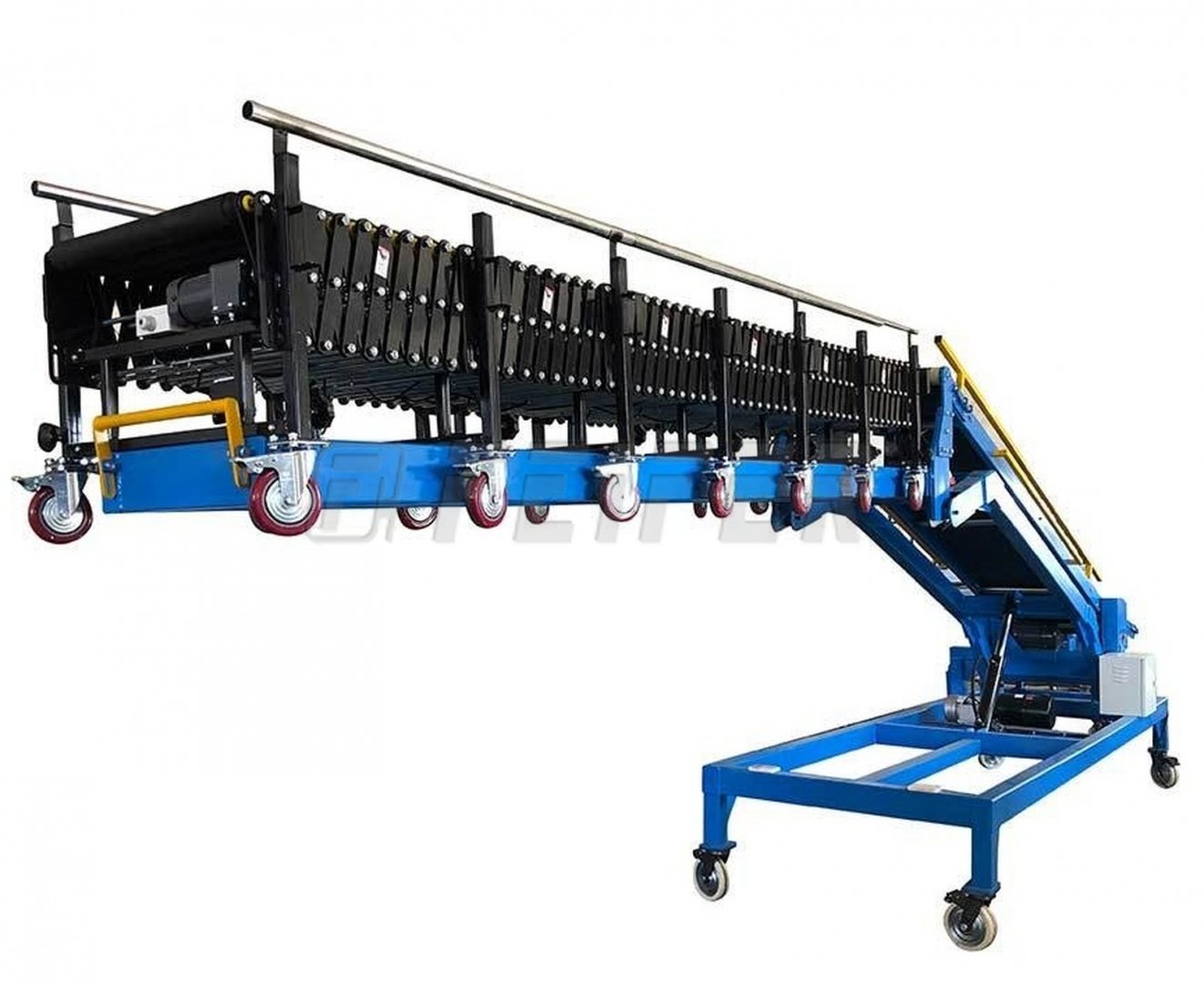

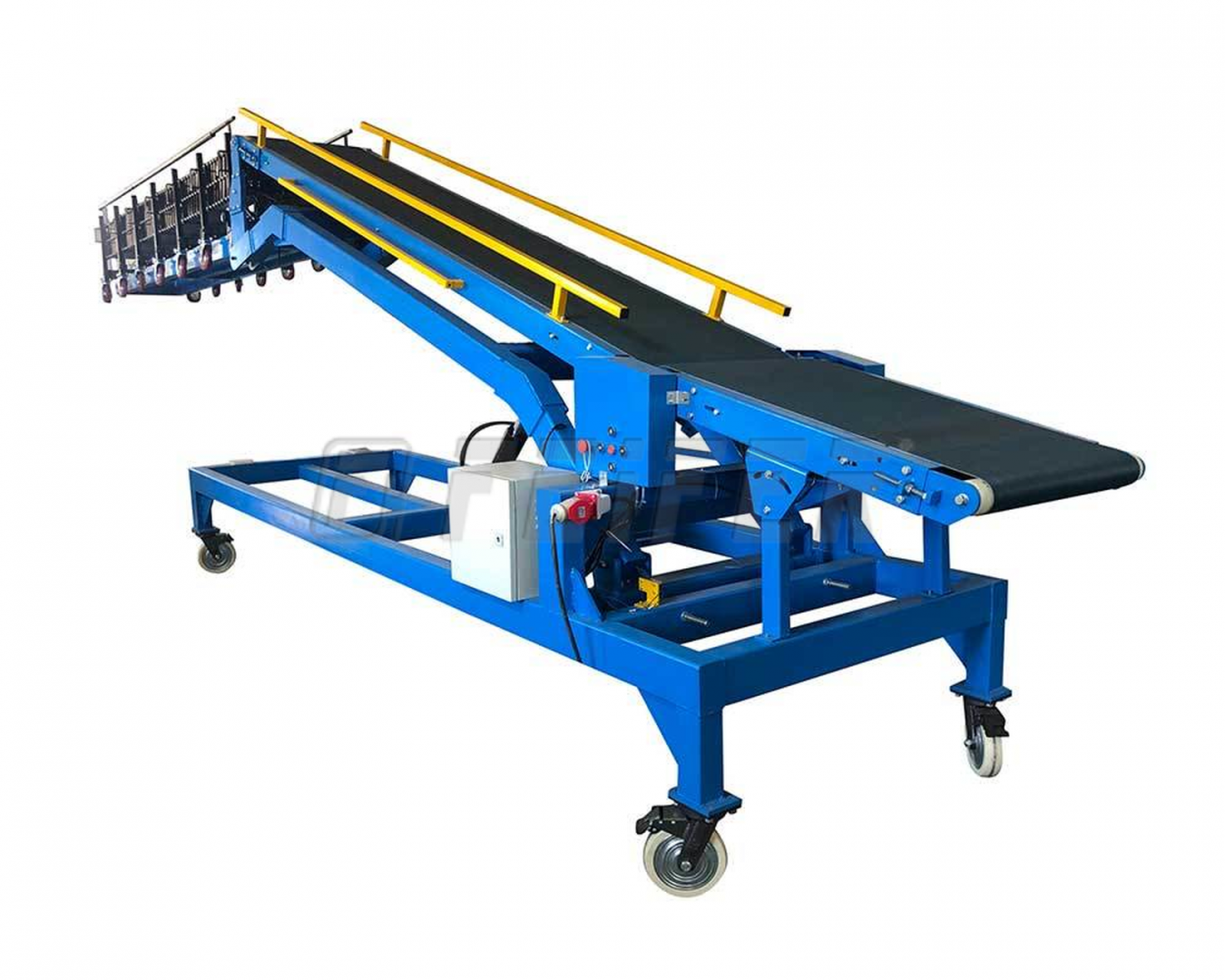

Conveyors of this type are particularly suitable for unloading and loading shipments from / into vehicles in warehouses, etc., in a place where a loading ramp is not available. The conveyor consists of two parts - a height-adjustable belt conveyor and an adjoining expandable driven roller conveyor. Their design allows you to sleeplessly change the height of the conveyor and the length of expansion for maximum efficiency when unloading and loading goods. The conveyor is equipped with wheels for easier handling.

The conveyors are available in two different working widths - 600 mm and 800 mm - and in two versions: FT (simpler, conveyor elevation realized by mechanical transmission with electric drive) and FCB (more advanced, conveyor elevation realized hydraulically).


Their advantages include:

  • speeding up the unloading and loading process - greater efficiency, minimizing downtime of vehicles
  • less physical effort on the part of the operator
  • reduced risk of injury compared to manual loading / unloading
  • low operating and maintenance costs, easy operation
  • robust design suitable for demanding use
  • use of quality components from leading European manufacturers (Schneider, SEW)

At the customer's request, the conveyor can be equipped with additional accessories (side barriers, sensors front / rear, counter, etc.).


Technical parameters

Technical parameters

ordering code 700 024471
track width (belt) 800 mm
track width (rollers) 770 mm
adjustable conveyor height 1050-2300 mm
length of expandable roller conveyor 2600-7200 mm
max. loading (kg/m) 50 kg
two-way operation ano
length when retracted 7500 mm
machine width 1450 mm
supply voltage 400V/50Hz
power input 3,7 kW
extension speed 10-18 m/min.
weight 1100 kg

Standard modifications
