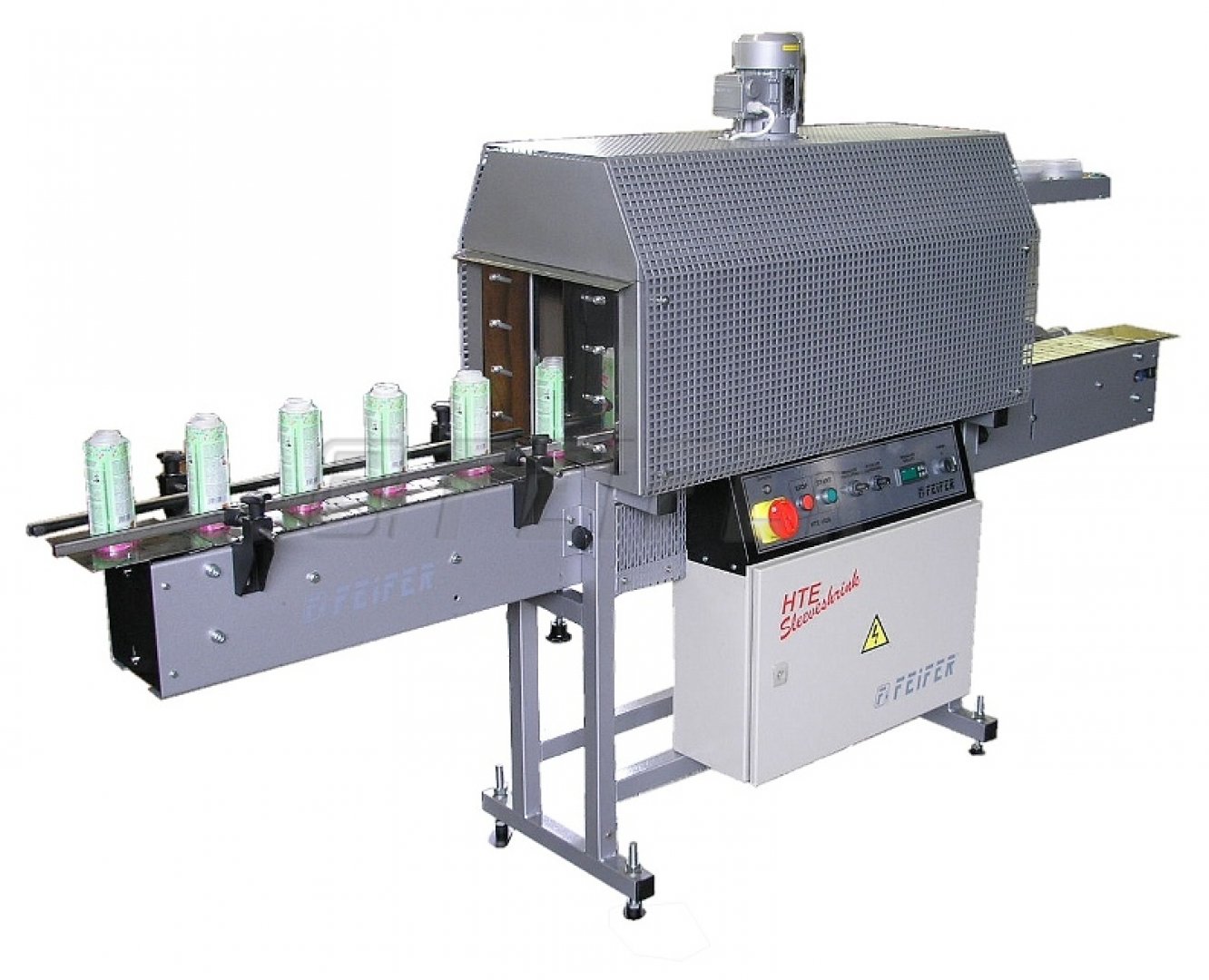

HTE-1830 SLEEVESHRINK - shrink tunnel
Shrink tunnel HTE-1830 SLEEVE is used to shrink of SLEEVE covers for various plastic, glass or metal packaging. Shrinkable sleeve covers usually replace conventional labels and their great advantage is the possibility to use the entire surface of the packaging to support a product or a brand. Sleeve covers can be also used as a seal of a product opening which especially useful in the food industry.
The shrink tunnel HTE is particularly suitable for packaging of cylindrical shape and for plants with low or medium packaging frequency.
Among main advantages of this tunnel below:
- excelent value for money
- low investment and operation costs compared to steam tunnels
- fluently adjustable conveyor speed in standard
- temperature control up to 205 °C
- powerful cooling system at the output of the tunnel
Technical parameters
Inquiry
Technical parameters
| ordering code | 600 000410 |
| supply voltage | 400V/50Hz |
| power input | 5,5 kW |
| material - foil |
PP POF SLEEVE |
| max. packing width | 152 mm |
| max. packing height | 250 mm |
| conveyor height | 850 - 900 mm |
| chamber dimensions (H x W x L) | 300 x 180 x 1000 mm |
| temperature inside the chamber | 50 - 205 °C |
| machine length | 2500 mm |
| machine width | 500 mm |
| machine height | 1600 mm |
| weight | 250 kg |
