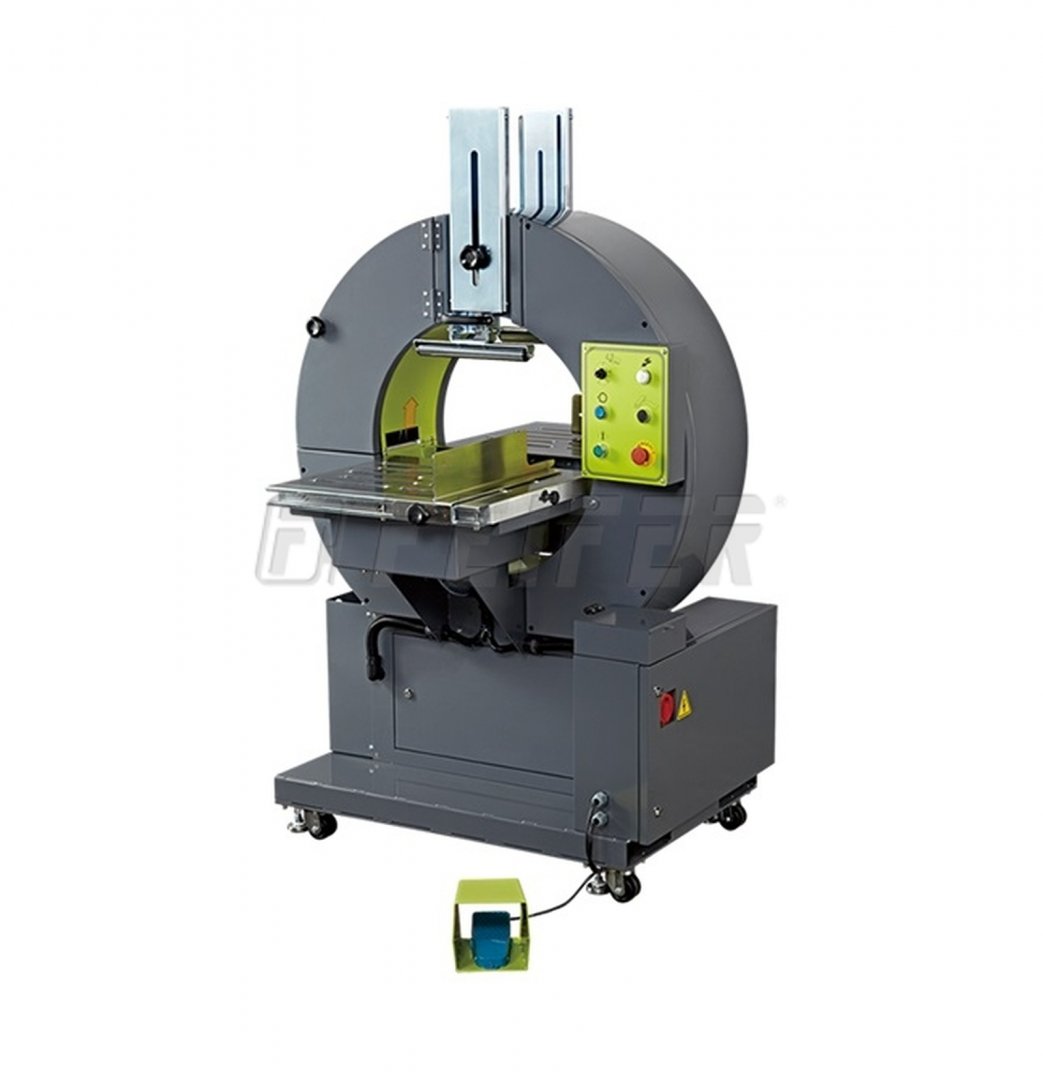

EXR-201 ORBIT - semi automatic horizontal wrapping machine

Semi-automatic horizontal machine EXR-201 ORBIT is similar to EXR-301 is designed for long objects wrapping, e.g. carpets, textiles, tubes, battens and other long profiles. Application is convenient also in case of impossible usage of another wrapping machine, e.g. for too small perimeter of wrapping good or if more careful fixation is necessary. Stainless input and output work tables are included. The machine is suitable for medium frequency wrapping jobs.



Among main advantages of this wrapping machine belong:

  • electro-pneumatic drive
  • low operating costs
  • low demands on machine maintenance
  • simple and robust construction
  • rotation of the moving wheel is controlled by frequency converter (slow start and stop, home position and fluent regulation of rotation speed)
  • 2 working modes (A – adjustable number of wind from 3 to 11, B – continual wrapping)
  • adjustable wrapping speed (max 100 winds/min)
  • automatic foil holding and thermal cutting in the end of the cycle
  • possibility of welding the foil
  • adjustable film tightening
  • unique tightening system with fractional roller



Informations about dimensions of wrapped object:

Min. size: 100 x 50 mm or average - 100 mm
Max. size:

  • square shape - 305 x 305 mm
  • rectangle shape - 508 x 178 mm
  • circle shape - average 330 mm



The resulting effect is strong and gentle fixation of packaged goods.

Technical parameters
Modification
Accessories
Inquiry

Technical parameters

ordering code 700 009941
supply voltage 230V/50Hz
power input 2 kW
compressed air 6 - 7 bar
inner diameter of roll 76 mm
material - foil LDPE stretch
max. film width 76, 100, 125 mm
turns of rotary arm max. 100 turns/min.
total track width 560 mm
conveyor height 910 mm
recommended length of wrapped object > 500 mm
min. size of wrapped object 100 x 50 mm
max. film diameter 178 mm

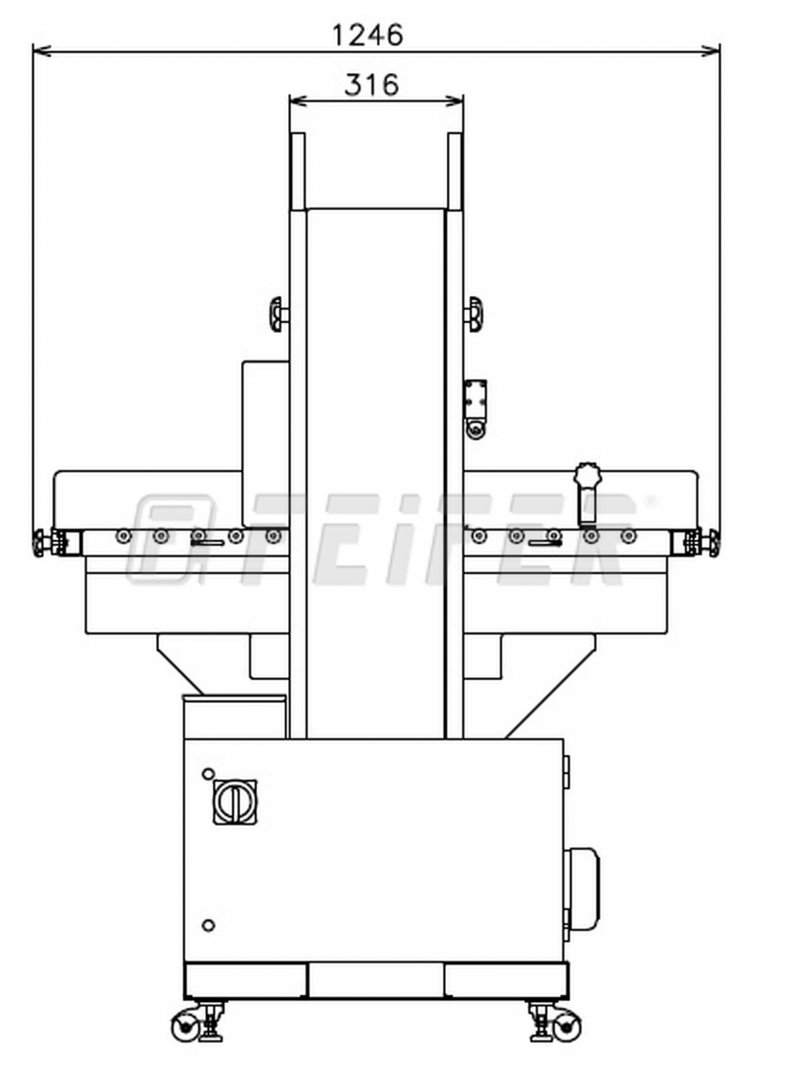

machine length 1163 mm

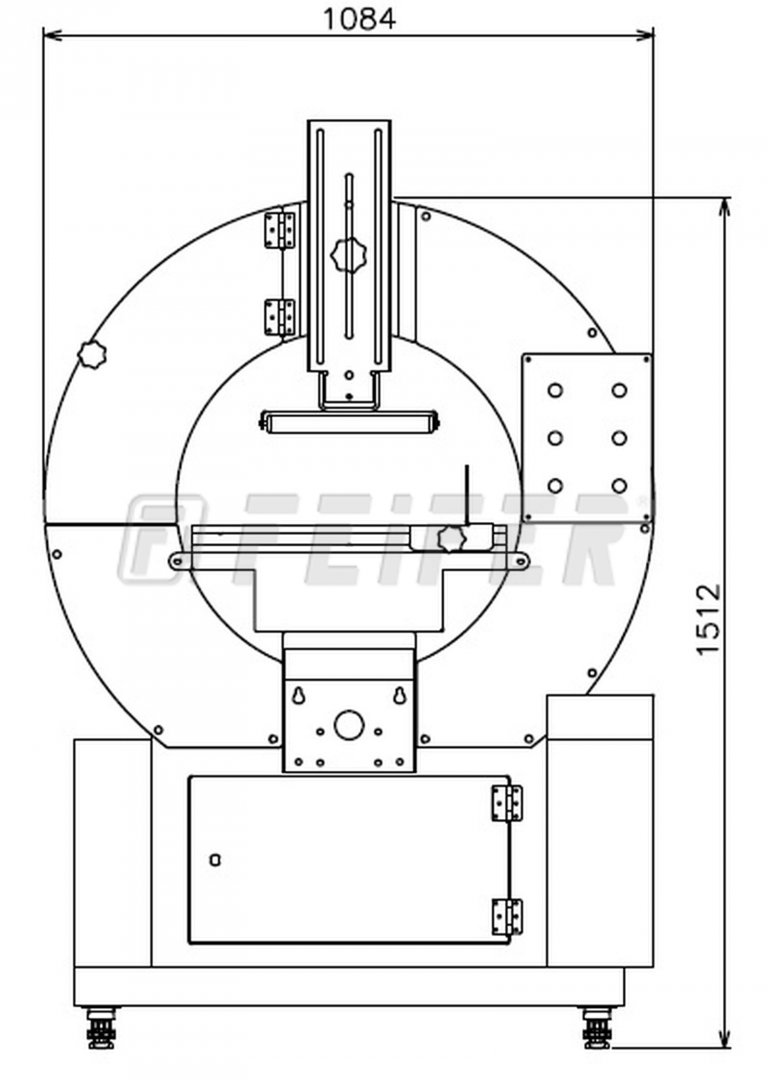

machine width 1084 mm
machine height 1512 mm
weight 315 kg

Standard modifications

EXR-401 ORBIT - semi automatic horizontal wrapping machine

EXR-401 ORBIT - semi automatic horizontal wrapping machine
  • for long objects wrapping
  • film fixing and cutting
  • max. speed - 100 turns/min
  • tight & careful fixation of goods

Recommended accessories

Driven belt conveyor 4000x400 mm

Driven belt conveyor 4000x400 mm
  • fluent speed regulation
  • track width - 400 mm
  • conveyor length - 4 m
