EXR-1050WR WrapMate - horizontal wrapping machine
The machines of the EXR-WrapMate series are especially suitable for packing smaller items such as cardboard boxes and other shipments sent by post or courier service. They can also be used where it is not possible to use strapping, for example due to the small packed circumference or due to the need for even more gentle fixation.
Among main advantages of this wrapping machine belong:
- economical design, suitable for operations with very low packing frequency
- manually driven
- easy and safe handling
- robust steel frame
- height-adjustable working table
- stepless regulation of film tension
- quick film change
- durable surface finish
Max. size of wrapped object (W x H):
- object of square / rectangular shape: 600 x 650 mm
- tall and narrow object: 250 x 750 mm
- wide and low object: 875 x 50 mm
- object of circular shape: ø 880 mm
Options and non-standards:
- narrow version of table for small packages
- table extension backwards 250 or 500 mm
- base plate if it is not possible to anchor the machine to the floor
- film holder 125 mm or 500 mm*
- adhesive tape holder
- bubble wrap film holder 500 mm
* 500 mm wide film holder is only suitable for objects with a large cross-section. In addition, the comparable tightening force cannot be achieved as with a 250 mm wide film!
Technical parameters
Product videos
Inquiry
Technical parameters
ordering code | 700 001161 |
material - foil |
hand stretch foil |

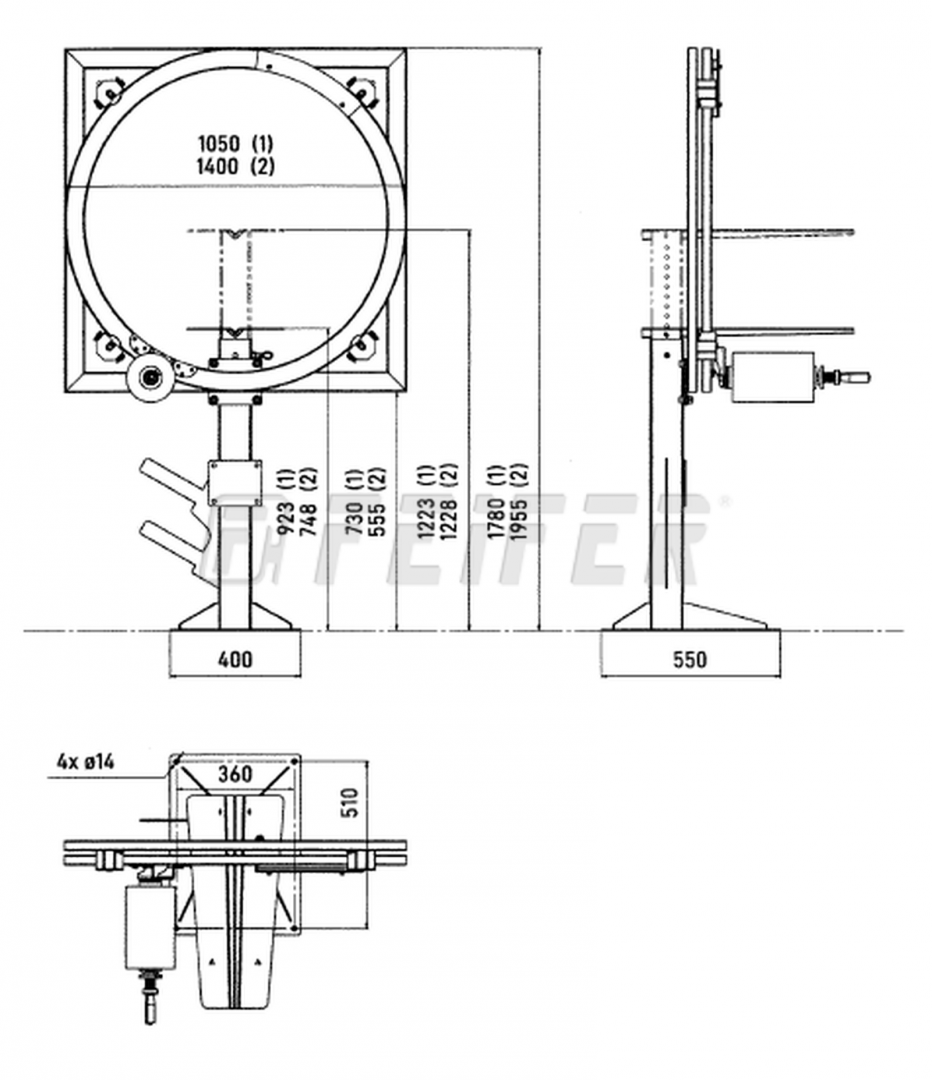

dimension (l x w x h) | 774 x 1050 x 1780 mm |
temperature range | 0 - 40 °C |
turns of rotating unit | max. 30 turns/min. |
min. size of wrapped object | 250 x 50 mm |
inner diameter of roll | 50 mm |
max. film diameter | 100 mm |
film thickness | 10-35 µm |
film width | (250 standard, 125 nebo 500 opce) mm |
weight | bez příslušenství cca 100 kg |
