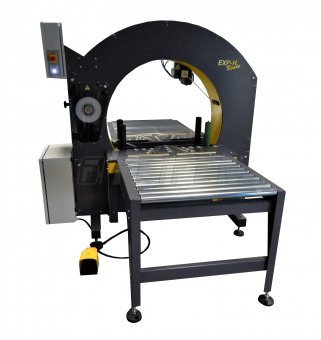

EXP-H1030AD RONDO TIRE - wrapping machine for packing tires
Wrapping machine EXP-H1030AD RONDO TIRE is intended for packing tires. It is suitable for medium frequency wrapping jobs. Delivery includes input and output conveyors.
Among other advantages of the machine belong:
- robust construction with motor driven turntable for wrapping of tires, coils etc.
- easy positioning of wrapped object
- quick wrapping thanks to 2 film decoilers
- partial wrapping mode
- possibility of choice between semi-automatic (operator cuts film) or automatic operation (automatic film cutting)
- perfect fixation of wrapped object
- simple control panel with touch screen
- service diagnostics of the machine
- low operating costs thanks to usage of thin films from 0,01 mm
- easy maintenance
- rotation of moving wheel is controlled by frequency converter (slow start and stop, home position and fluent regulation of rotation speed).
The machine is intended for dry and low dusty environment.
Technical parameters
Product videos
Inquiry
Technical parameters
| ordering code | 600 002270 |
| material - foil |
LDPE stretch |
| film width | 125 mm |
| max. film thickness | 30 µm |
| min. size of wrapped object | 80 x 50 mm |
| turns of rotating unit | max. 60 turns/min. |
| total track width | 600 / 1 000 mm |
| conveyor height | 900 mm |
| dimension (l x w x h) | 1000 x 1580 x 2000 mm |
| supply voltage | 400 V / 50 Hz |
| power input | 2,5 kW |
