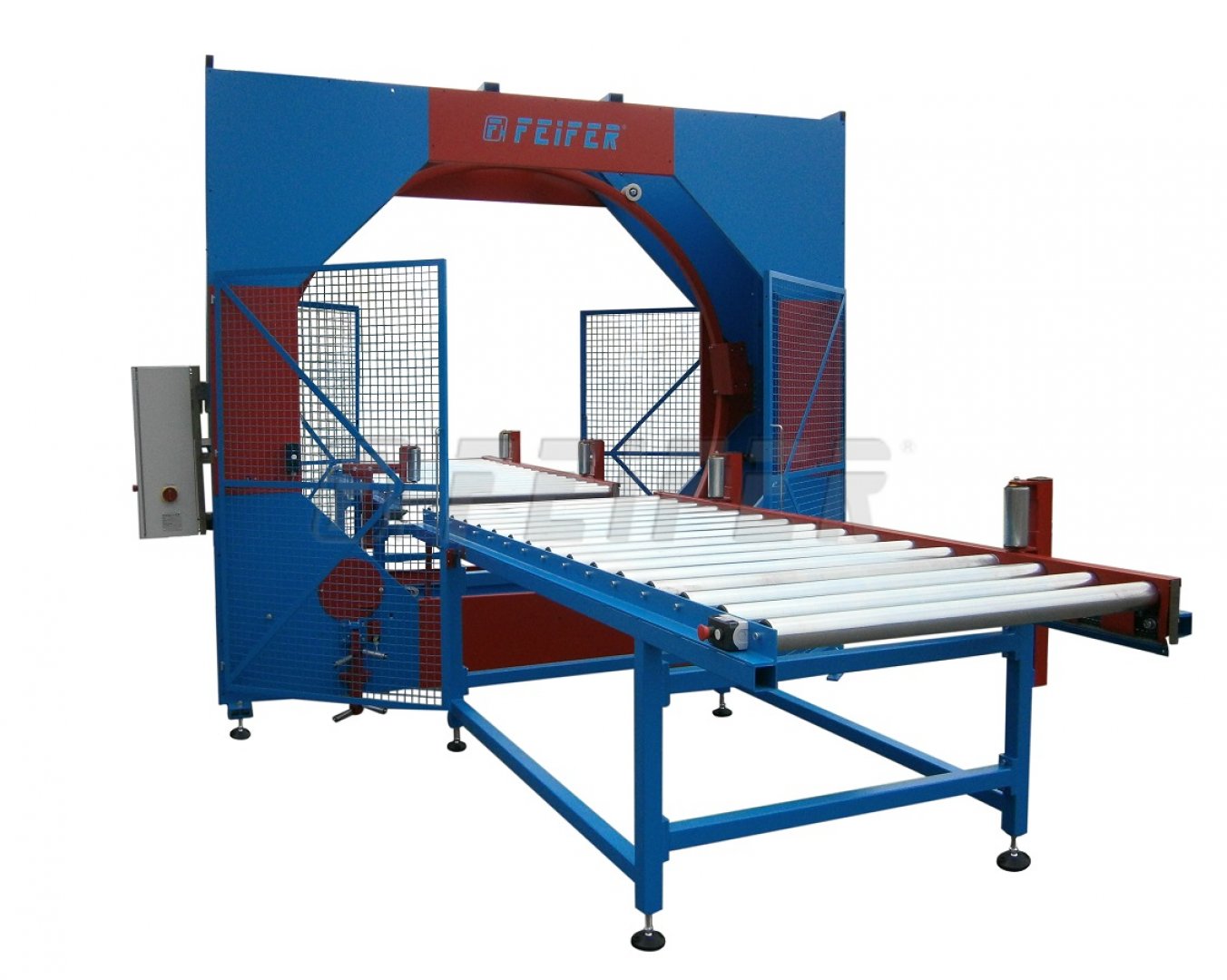

EXP-H 2600 RONDO - semi automatic horizontal wrapping machine

Horizontal wrapping machine EXP-H2600 RONDO is intended for wrapping long objects e.g. doors, windows, boards, etc. into stretch film. It is suitable for medium frequency wrapping jobs. Delivery includes input and output driven conveyors.

Among other advantages of the machine belong:

  • intended for wrapping long objects e.g. doors, windows, boards, etc. into stretch film
  • delivery includes input and output conveyors
  • easy machine operation – automatic film cutting
  • rotation of moving wheel is controlled by frequency converter (slow start and stop, home position and fluent regulation of rotation speed)
  • low operating costs
  • suitable for medium frequency wrapping jobs
  • robust construction enables usage of standard width of film (500 mm – low wrapping material costs)
  • easy maintenance

The machine is intended for dry and low dusty environment.

Technical parameters
Inquiry

Technical parameters

ordering code 600 000545
supply voltage 400V/50Hz
power input 6 kW
machine length 1250 mm
machine width 3200 mm
machine height 3400 mm
material - foil LDPE stretch
max. film width 500 mm
film thickness 30 µm
min. size of wrapped object 1000 x 60 mm
max. size of wrapped object 1250 x 1000 mm
recommended length of wrapped object 2500 - 13 000 mm
diameter of moving wheel 2600 mm
turns of rotating unit max. 16 turns/min.
total track width 1250 mm
conveyor height 900 mm
transporting speed 4 m/min.

Standard modifications
