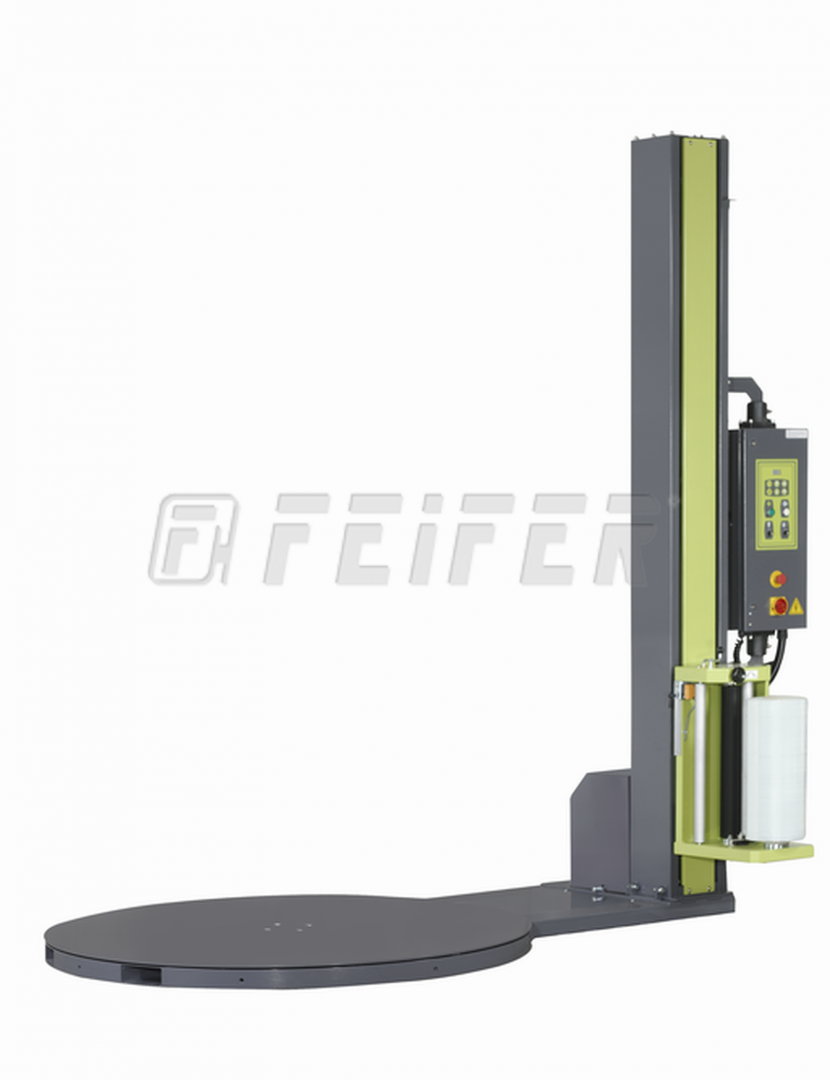

EXP-308 - pallet stretch wrapping machine

Automatic pallet stretch wrapping machine EXP-308 is suitable for low and medium frequency wrapping jobs. The machine is equipped in standard with 3 preset wrapping programs and spring brake of film (operator only fixes film to a pallet before starting wrapping cycle and cutsfilm after finishing wrapping cycle).



Other equipment includes:

  • home position - the turntable always stops at the same position
  • slow start and stop of the turntable
  • high seeking by photo sensor
  • fluent regulation of speed ofturntable andelevator unit

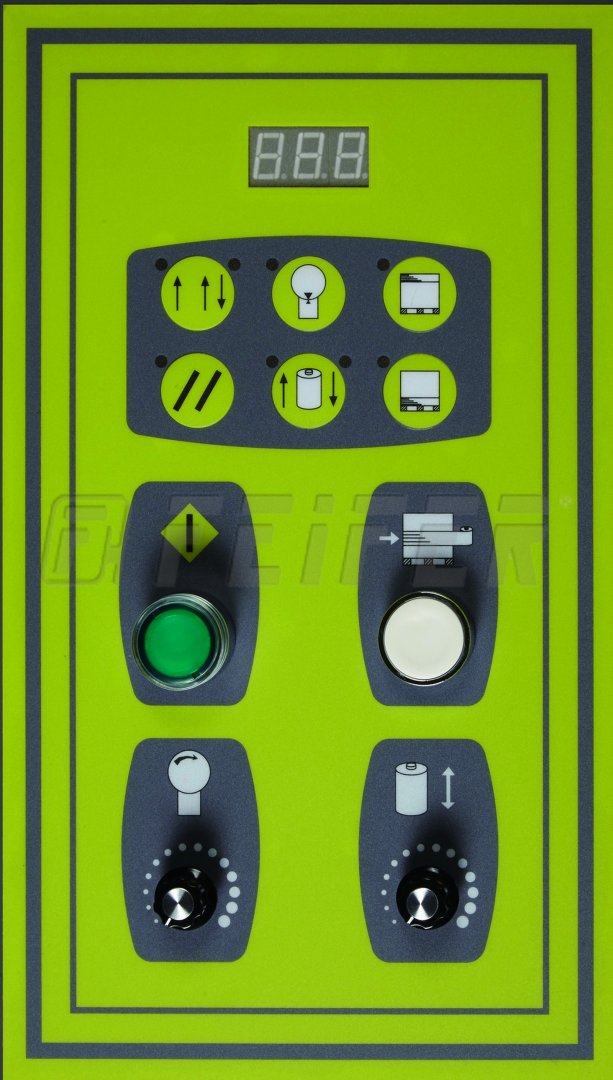

  • programming and communication with control unit by mini-display and by digestedly placed buttons with pictograms
Technical parameters
Packing material
Inquiry

Technical parameters

ordering code 700 008322
supply voltage 230 V / 50 Hz
power input 1,0 kW
material - foil machine stretch
max. pallet dimensions (L x W) 1200 x 800 mm
max. pallet height 2000 mm
max. pallet weight 1650 kg
turntable turns 12 turns/min.
turntable height 82 mm
turntable diameter 1500 mm
machine length 2550 mm
machine height 2345 mm
machine width 1650 mm
weight 406 kg

Standard modifications

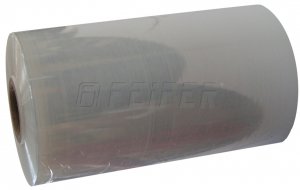

Binding and packaging materials

500 x 0,023 mm - machine stretch foil, elongation 150%

500 x 0,023 mm - machine stretch foil, elongation 150%
  • width - 500 mm
  • thickness - 23 my
  • elongation 150%
  • weight of roll approx. 18 kgs

500 x 0,030 mm - machine stretch foil, elongation 150%

500 x 0,030 mm - machine stretch foil, elongation 150%
  • width - 500 mm
  • thickness - 30 my
  • elongation 150%
  • weight of roll approx. 18 kgs

500 x 0,035 mm - machine stretch foil, elongation 150%

500 x 0,035 mm - machine stretch foil, elongation 150%
  • width - 500 mm
  • thickness - 35 my
  • elongation 150%
  • weight of roll approx. 18 kgs

500 x 0,023 mm - machine stretch foil, elongation 220%

500 x 0,023 mm - machine stretch foil, elongation 220%
  • width - 500 mm
  • thickness - 23 my
  • elongation 220%
  • weight of roll approx. 18 kgs
