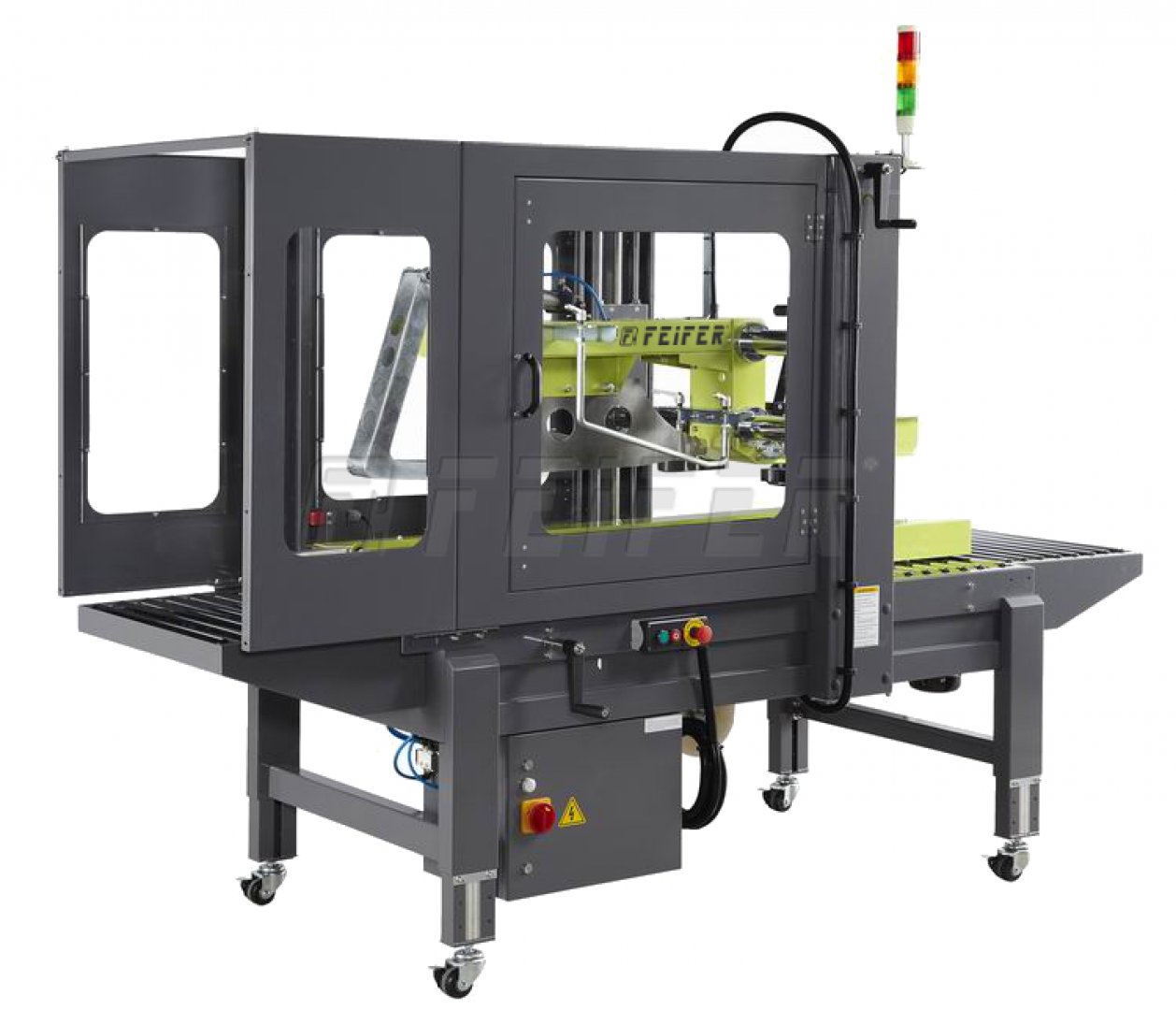

EXC-108 SDR - carton sealing machine

Automatic machine EXC-108 SDR with side driving belts suitable for use in automatic wrapping lines. The machine is equipped with automatic flap closing and sealing. Cartons size adjustment is manual (suitable for sealing cartons of the same size). This modification also includes safety doors and covering.

Technical parameters
Inquiry

Technical parameters

ordering code 600 000282
wrapping material PVC straps
dimension (l x w x h) 1955 x 890 x 1700 mm
machine working electric
carton size adjustment manual
carton flaps closing automatic
carton size l x w x h (120 - 610) x (100 - 500) x (100 - 500) mm
conveyor height 680 - 820 mm
transporting speed 23 m/min.
supply voltage 230 V / 50 Hz
power input 0,5 kW
width of self-adhesive tape 36, 50 mm
machine weight 300 kg
noise level of machine < 70 dB

Standard modifications
