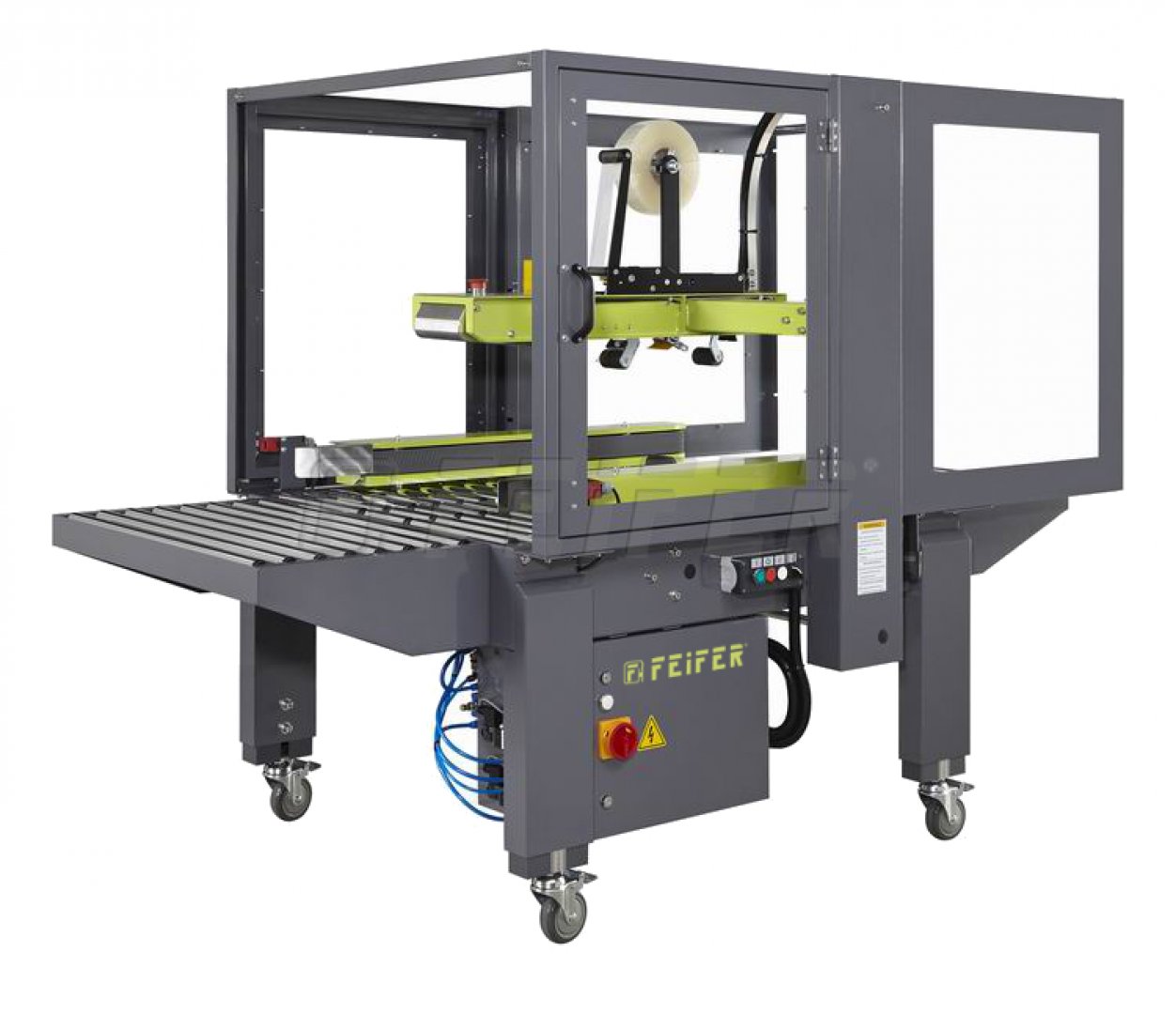

EXC-105 SDR - carton sealing machine (incl. safety cover)
Automatic sealine machine EXC-105 SDR with side driving belts, is equipped with automatic adjustment according to carton size, 3 modes of movement of upper sealing system and memory for the last carton size. The machine has electro-pneumatic working, no operator is necessary. This modification also includes safety doors and covering.
Technical parameters
Inquiry
Technical parameters
| ordering code | 600 000156 |
| dimension (l x w x h) | 1160 x 1030 x 1550 mm |
| wrapping material |
PVC straps |
| machine working | electro-pneumatic |
| carton size adjustment | automatic |
| carton flaps closing | manual |
| carton size l x w x h | (120 - ∞) x (110 - 600) x (120 x 600) mm |
| width of self-adhesive tape | 38, 50, 75 mm |
| conveyor height | 680 - 880 mm |
| transporting speed | 23 m/min. |
| supply voltage | 230 V / 50 Hz |
| noise level of machine | < 70 dB |
| machine weight | 150 kg |
| power input | 0,45 kW |
| compressed air | 6 - 7 bar |
| adhesive | |
| adhesive |
