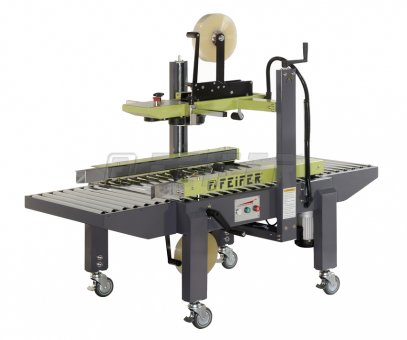

EXC-103 SD - carton sealing machine
Semi-automatic machine EXC-103 SD with side driving belts. Carton size adjustment is manual (suitable for sealing cartons of the same size). Excellent rate price / output. On customer´s demand it is possible to deliver the machine in stainless modification.
Technical parameters
Product videos
Inquiry
Technical parameters
| ordering code | 700 001184 |
| dimension (l x w x h) | 1713 x 854 x 1350 mm |
| wrapping material |
PVC straps |
| machine working | electric |
| carton size adjustment | manual |
| carton flaps closing | manual |
| carton size l x w x h | (120 - ∞) x (100 - 500) x (120 x 500) mm |
| width of self-adhesive tape | 38, 50, 75 mm |
| conveyor height | 600 - 820 mm |
| transporting speed | 23 m/min. |
| supply voltage | 230 V / 50 Hz |
| noise level of machine | < 70 dB |
| machine weight | 100 kg |
| power input | 0,45 kW |
