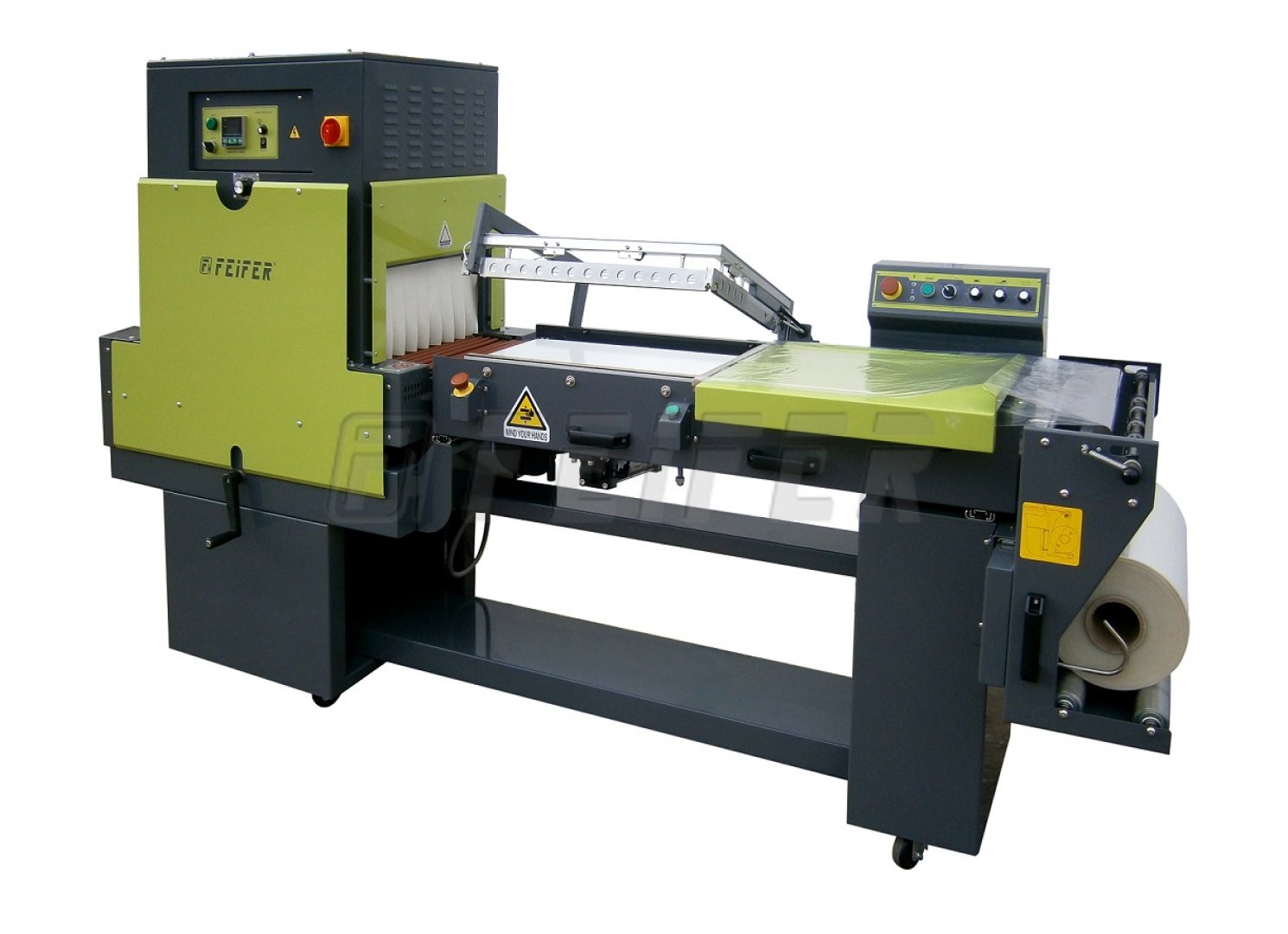

EKL-455 PT - film wrapping machine

Wrapping machine EKL-455PT intended for wrapping into thermo-shrink foils. Suitable for medium or high frequency wrapping jobs. The machine is especially intended for wrapping consumer goods, printed materials, plastic products, etc.



Among main advantages of this machine belong:

  • minimal external dimensions (L-sealer as well as tunnel are placed on one frame)
  • low investments costs
  • height of the conveyor under sealer is adjustable
  • speed of conveyor in shrink chamber is adjustable
  • mobility (equipped with wheels)
  • adjustable sealing time
  • pneumatic closing as well as holding of the sealer
  • temperature inside the chamber is separately adjustable
  • foil perforator for easy shrinking
  • latest technology of impulse sealing



Easy operation: An operator places the wrapped objects between foils, moves the objects under sealer. In dependence on set mode the sealer is closed (automatic mode), or in manual mode the sealer is closed by pressing the switch START. Sealing is performed automatically. When the sealer is held by electromagnet, the operator can prepare further objects for wrapping. As soon as the wrapped objects are sealed into foil, the sealer is released automatically, the conveyor is started up automatically and the wrapped object is transported into shrink chamber, where the foil is shrunk around the wrapped objects.

Technical parameters
Packing material
Inquiry

Technical parameters

ordering code 700 008397
supply voltage 400V/50Hz
sealing dimension 400 x 550 mm
power input 9,0 kW
max. film dimension (width x diameter) 600 x 300 mm
weight 400 kg
dimension (l x w x h) 2570 x 870 x 1600 mm
material - foil PE
PVC
PP
POF
max. film thickness 35 µm
roll type center folded foil
passage height of tunnel 200 mm

Standard modifications

Binding and packaging materials

POF 200 x 0,015 mm, 1250 m - shrink foil, half tube

POF 200 x 0,015 mm, 1250 m - shrink foil, half tube
  • width - 200 mm
  • thickness - 0,015 mm
  • design half-tube/half-sleeve

POF 250 x 0,019 mm, 1000 m - shrink foil, half tube

POF 250 x 0,019 mm, 1000 m - shrink foil, half tube
  • width - 250 mm
  • thickness - 0,019 mm
  • design half-tube/half-sleeve

POF 300 x 0,019 mm, 1000 m - shrink foil, half tube

POF 300 x 0,019 mm, 1000 m - shrink foil, half tube
  • width - 300 mm
  • thickness - 0,019 mm
  • design half-tube/half-sleeve

POF 350 x 0,015 mm, 1250 m - shrink foil, half tube

POF 350 x 0,015 mm, 1250 m - shrink foil, half tube
  • width - 350 mm
  • thickness - 0,015 mm
  • design half-tube/half-sleeve

POF 350 x 0,019 mm, 1000 m - shrink foil, half tube

POF 350 x 0,019 mm, 1000 m - shrink foil, half tube
  • width - 350 mm
  • thickness - 0,019 mm
  • design half-tube/half-sleeve

POF 350 x 0,025 mm, 750 m - shrink foil, half tube

POF 350 x 0,025 mm, 750 m - shrink foil, half tube
  • width - 350 mm
  • thickness - 0,025 mm
  • design half-tube/half-sleeve

POF 400 x 0,019 mm, 1000 m - shrink foil, half tube

POF 400 x 0,019 mm, 1000 m - shrink foil, half tube
  • width - 400 mm
  • thickness - 0,019 mm
  • design half-tube/half-sleeve

POF 400 x 0,025 mm, 750 m - shrink foil, half tube

POF 400 x 0,025 mm, 750 m - shrink foil, half tube
  • width - 400 mm
  • thickness - 0,025 mm
  • design half-tube/half-sleeve

PVC 400 x 0,025 mm - shrink foil, half tube

PVC 400 x 0,025 mm - shrink foil, half tube
  • width - 400 mm
  • thickness - 0,025 mm
  • design half-tube/half-sleeve
