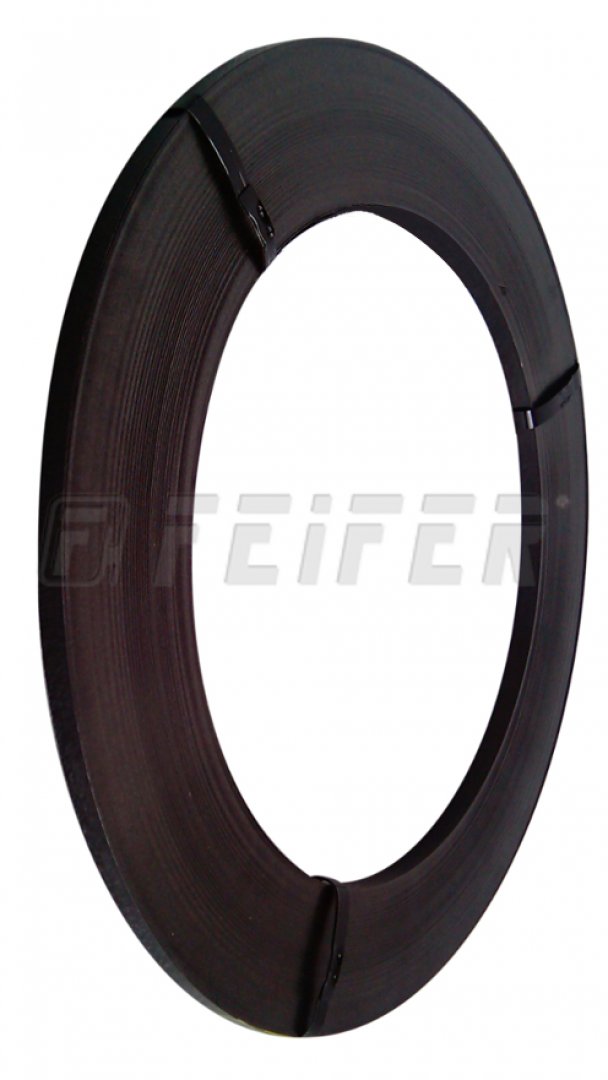

32 x 0,8 mm - steel strap, painted, PRIMA, ribbon winding

Painted steel straps PRIMA are suitable for automatic or manual strapping of heavy products.  They are used especially in steel and wood processing industry but also in other industries, for example for palletizing. Painted steel straps show very stable characteristics with minimal tolerances and are primarily intended for strapping of products of medium height.

Utility characteristics of these straps due to high resistance to weathering and perfectly smooth surface highly exceeding characteristics of standard steel strap without surface treatment.

Width of simple roll equal to width of the strap, inner diam. is 406 ± 5 mm, outer diam. of a simple roll is max. 670 mm.

ATTENTION: The weight of roll is only indicative. We charge real weight on removal from storage.

Technical parameters
Inquiry

Technical parameters

ordering code 700 009696
strap - material steel
strap width 32 mm
strap thickness 0,8 mm
break Strength 20480 N
outer diameter of roll 670 mm
inner diameter of roll 406 (+- 5) mm
weight of roll cca 52 kg
kg/m conversion 5,0 m/kg
surface treatment painted
elongation min. 7 %
