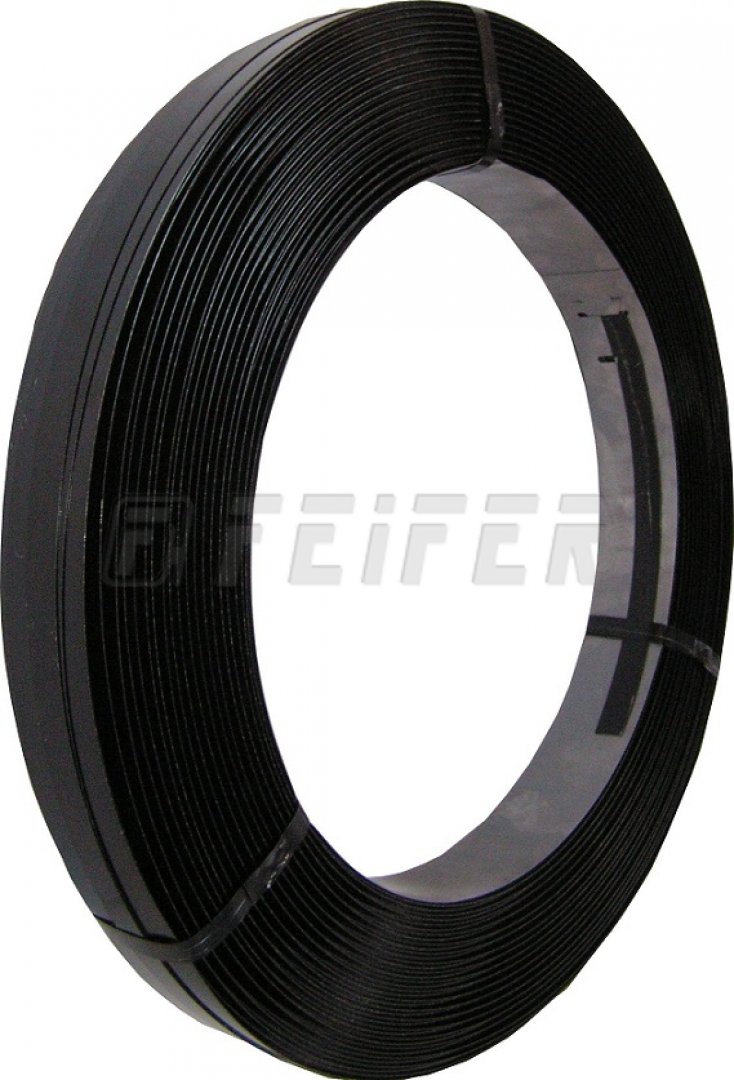

16 x 0,5 mm - steel strap, painted, PRIMA, oscillated winding

Painted steel straps PRIMA are suitable for automatic or manual strapping of heavy products.  They are used especially in steel and wood processing industry but also in other industries, for example for palletizing. Painted steel straps show very stable characteristics with minimal tolerances and are primarily intended for strapping of products of medium height.

Utility characteristics of these straps due to high resistance to weathering and perfectly smooth surface highly exceeding characteristics of standard steel strap without surface treatment.

Width of oscillated roll is 66-68 mm, weight of roll is approx. 50 kgs, inner diam. is 406 ± 5 mm, outer diam. of a oscillated roll is max. 580 mm.

ATTENTION: The weight of roll is only indicative. We charge real weight on removal from storage.

Technical parameters
Inquiry

Technical parameters

ordering code 700 009693
strap - material steel
strap width 16 mm
strap thickness 0,5 mm
break Strength 6400 N
inner diameter of roll 406 mm
outer diameter of roll 580 mm
kg/m conversion 15,9 m/kg
surface treatment painted
coil width 66-68 mm
elongation min. 5 %
weight cca 50 kg
