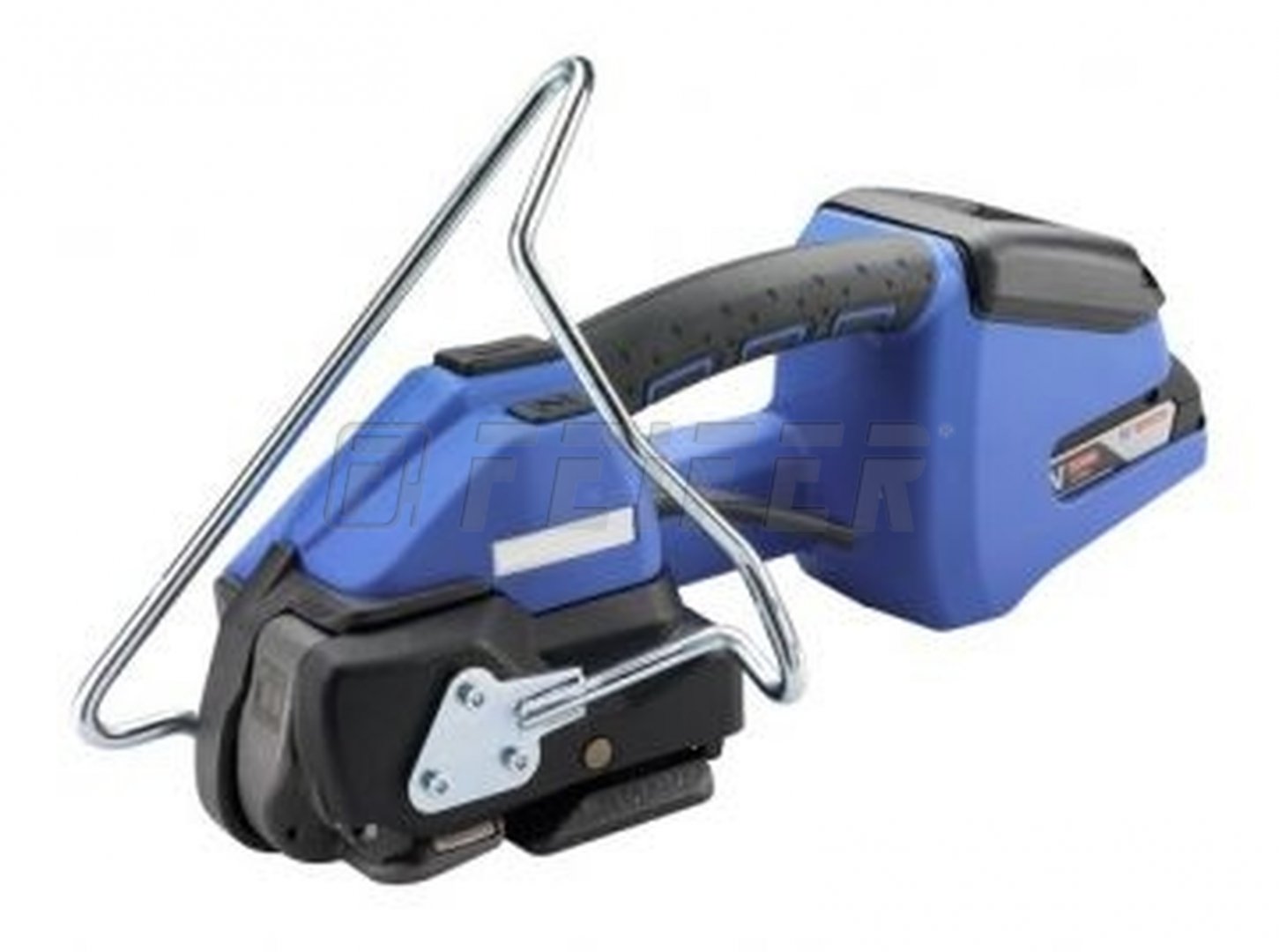

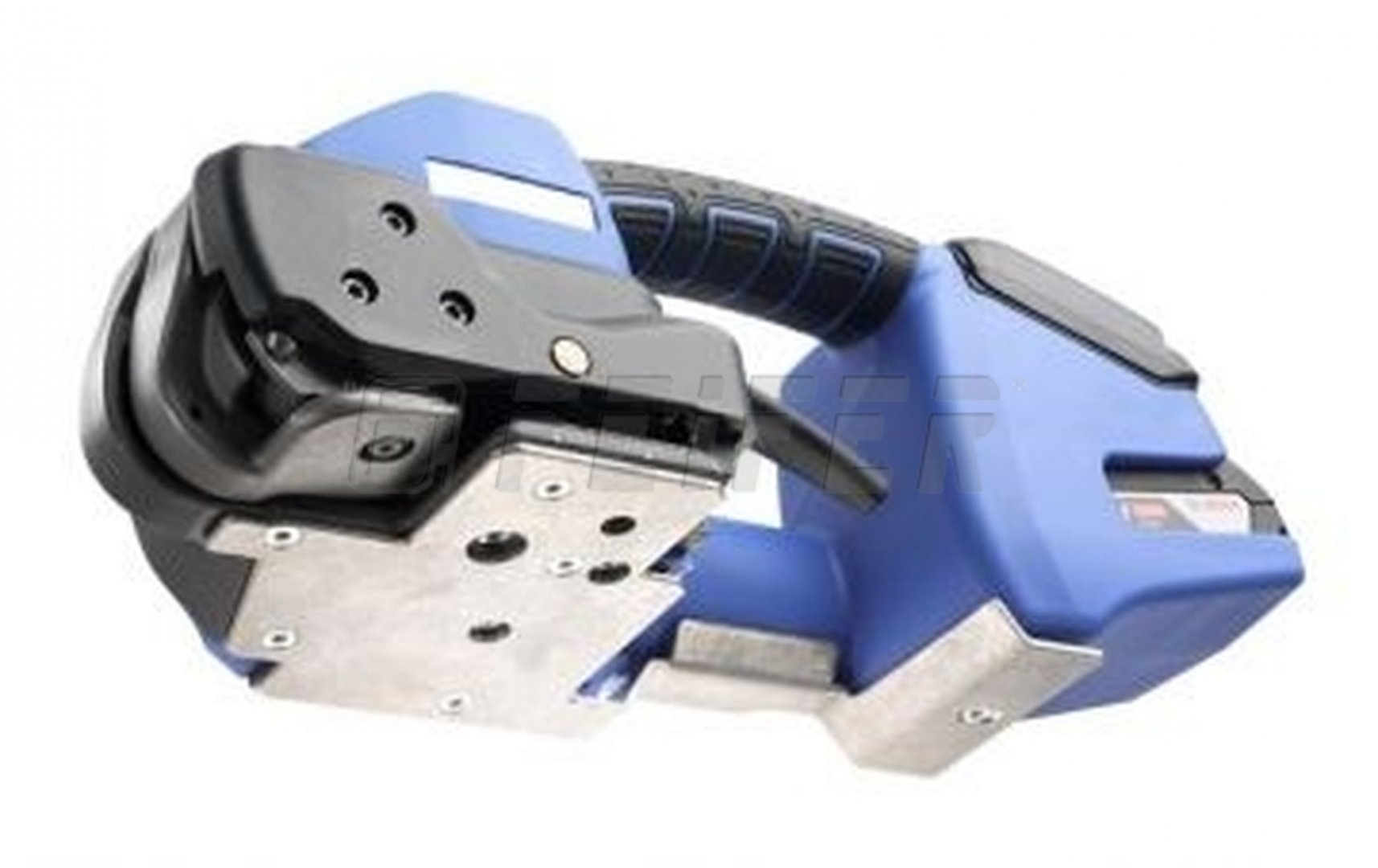

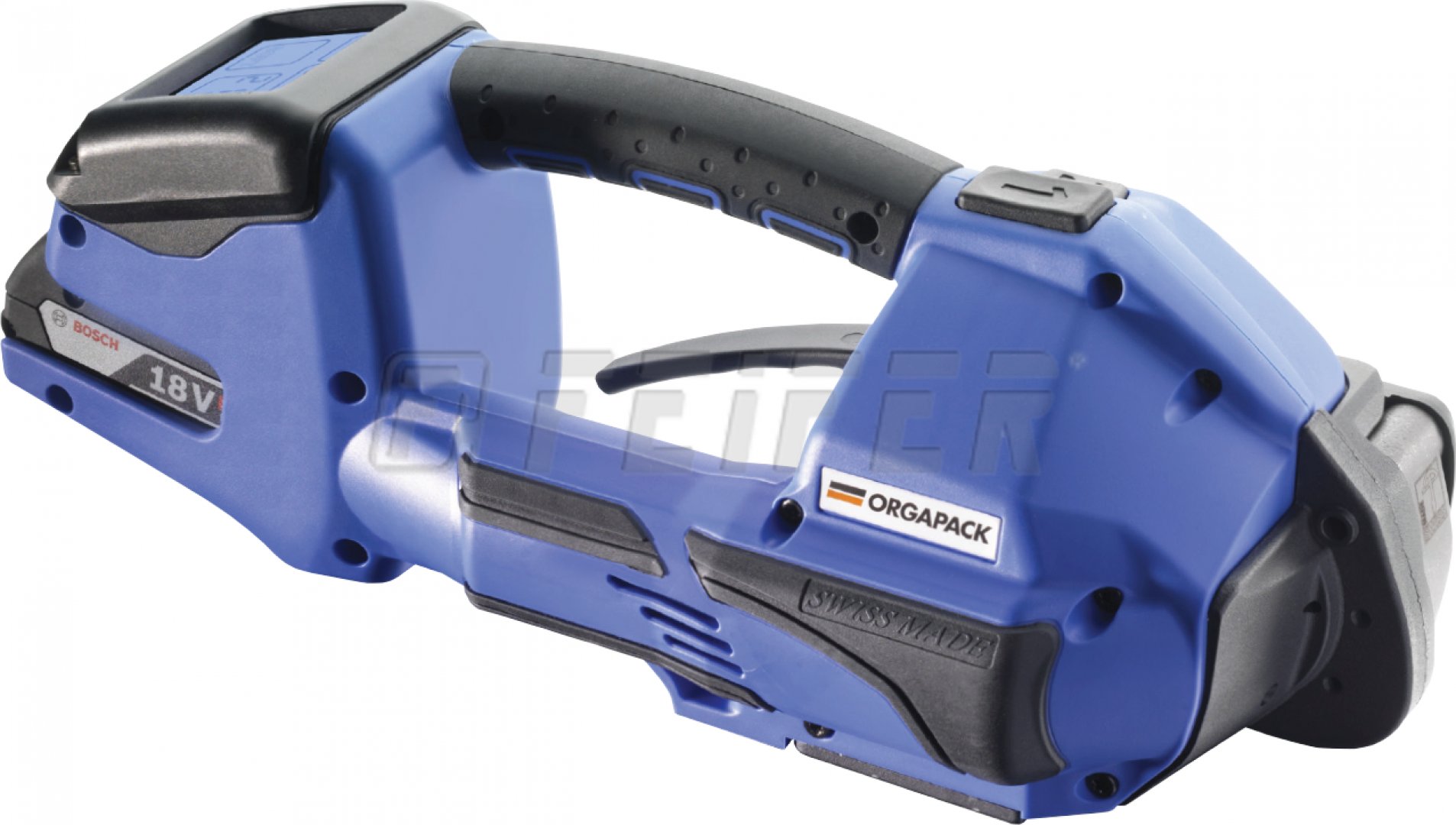

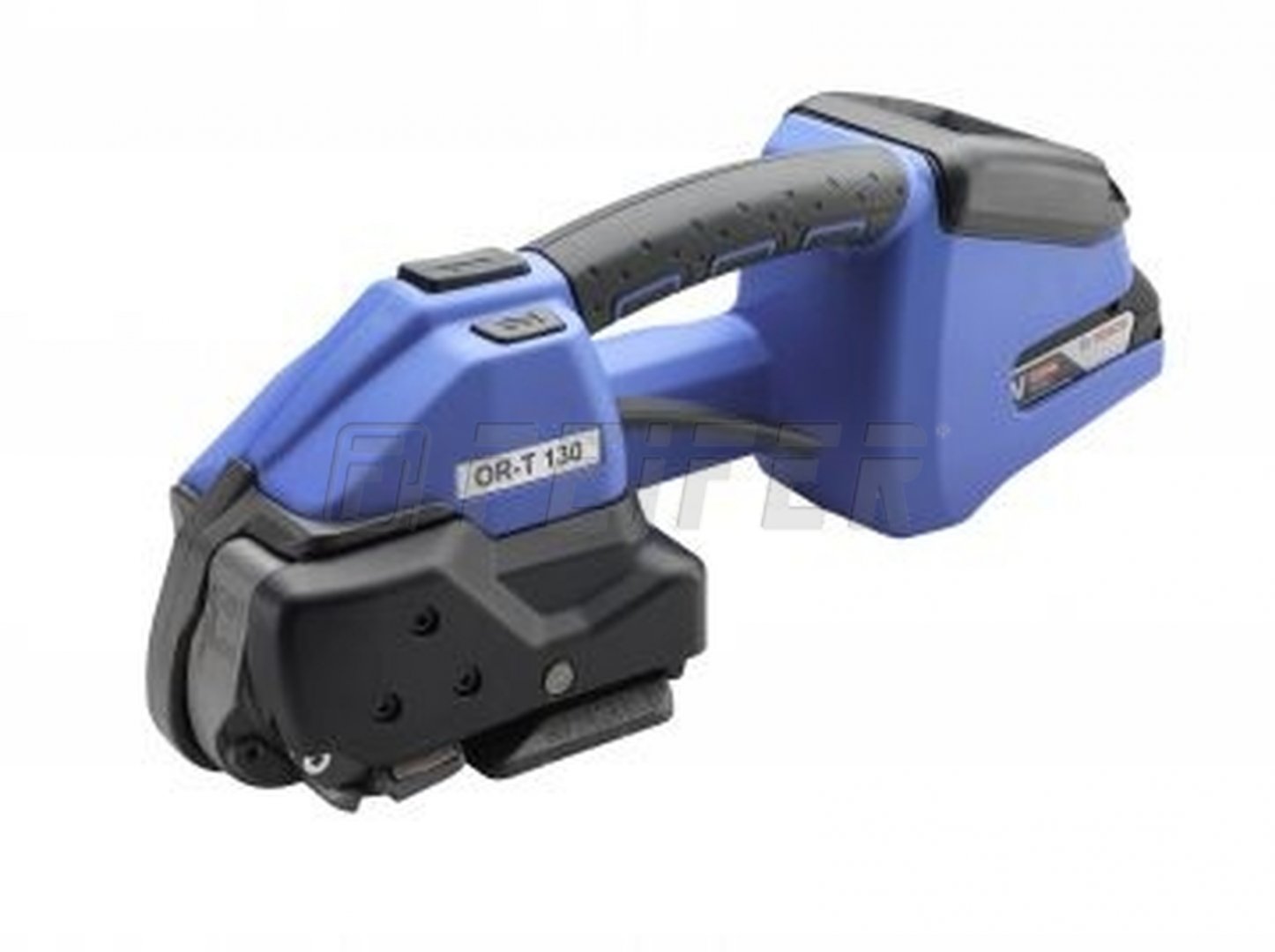

OR-T 130 - battery strapping tool for PP, PET strap
Battery strapping hand tools OR-T 130 that are suitable for pallets or groups of goods strapping with polypropylene (PP) or polyester (PET) strap without power supply needs. These models are equipped with automatic tightening and strap welding. These strapping tools can be used in three working modes:
- manual
- semi-automatic
- automatic

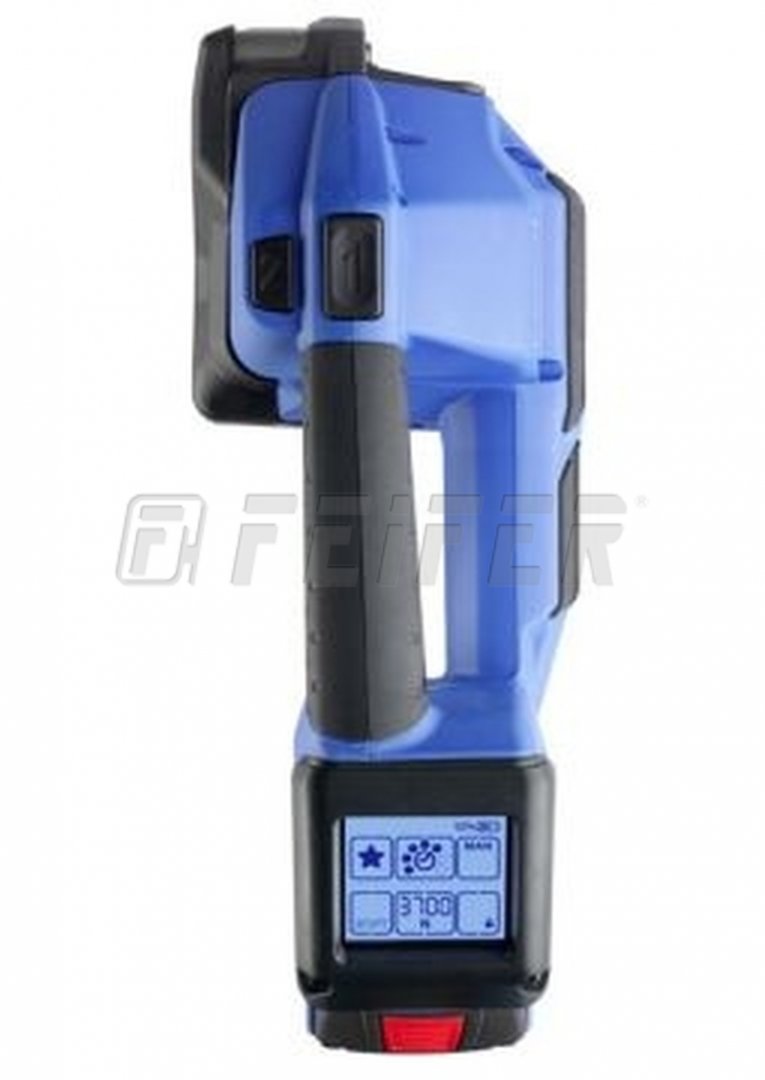

Thanks to their construction are balanced, lightweight, strong and very resistant to possible fall from working height. They are newly equipped with a touch display that allows the operator to easily set all the required parameters:
- Working mode
- Tightening power
- Welding time
The display also shows the current battery status, and the favorite strapping function can be preset to the tool memory. Thanks to its ease of use, processing quality and accuracy, the OR-T strapping tools belongs to the best-selling types of battery strapping tools.
Technical parameters
Modification
Accessories
Packing material
Spare part
Inquiry
Technical parameters
| ordering code | 700 022761 |
| strap - material |
PP PET |
| supply voltage | aku Li-Ion 18V, 2.0Ah |
| strap width | 9 - 12, 12 - 13 mm |
| strap thickness | 0,4 - 0,8 (PET), 0,5 - 0,8 (PP) mm |
| weight | 3,6 kg |
| sealing method | sealless |
| tightening power | 400 - 1200 N |
| qty of strapping cycles with 1 charge | max. 600 |
| battery charge time | 15 - 30 min. hour |
| dimension (l x w x h) | 370 x 141 x 135 mm |
| max. tightening speed | 290 mm/s |
Standard modifications
OR-T 260 - battery strapping tool for PP, PET strap
- strap width 12 - 16 mm
- 18V Li-Ion high-capacity battery
- high tightening power (2500N)
- heavy duty construction
OR-T 450 - battery strapping tool for PP, PET strap
- strap width 16 - 19 mm
- 18V Li-Ion high-capacity battery
- high tightening power (4500N)
- heavy duty construction
Action
ZAPAK ZP90 - battery strapping tool for PP, PET
- strap width 9 - 13 mm
- 18V Li-Ion battery
- more efficient brushless motor
- higher battery capacity
Action
ZAPAK ZP93 - battery strapping tool for PP, PET
- strap width 9 - 16 mm
- 18V Li-Ion battery
- more efficient brushless motor
- higher battery capacity
Action
ZAPAK ZP97 - battery strapping tool for PP, PET
- strap width 15 - 19 mm
- 18V Li-Ion battery
- more efficient brushless motor
- higher battery capacity
Recommended accessories
KL-1 - steel strap cutter
- for steel straps
- max. strap size 32 x 1 mm
- robust cutter
- holder for precise cutting
OP-6 - decoiler for PP straps
- inner diameter - 400 mm
- spring brake of strap
- extra robust construction
- for high frequency jobs
OP-6E - decoiler for PP straps
- inner diameter - 200 and 400 mm
- simple screw brake on axis
- for low frequency jobs
OP-6EB - decoiler for PP straps
- inner diameter - 200 and 400 mm
- spring brake of strap
- for low frequency jobs
OP-10EB - decoiler for PP straps
- inner diameter - 200 mm
- spring brake of strap
- for low frequency jobs
OP-1 - decoiler for PP straps
- inner diameter - 60 mm
- simple screw brake on axis
- light and portable
Strap lance
- max. strap width - 35 mm
- easy strap threading under pallet
- for plastic and textile strap
ZP-5 - spring balancer for loading
- max. loading - 1-5 kg
- robust metal model (alloy)
- pre-tensioning by ergonom. rose
- safety device in case of break
OP-8 - decoiler for PP, PET, oscillated steel straps
- strap width 10 - 20 mm
- inner diameter 400 - 406 mm
- oscillated winding
- friction brake,robust construction
Binding and packaging materials
PP strap 12 x 0,50 mm, 200/190 - 3100 m, 1300 N, black
- width 12 mm, thickness 0,50 mm
- black color
- strength 1300 N
- tube 200 mm, roll 3100 m
PP (polypropylen) strap 12 x 0,50 mm, 400/180 - 3000 m, 1300 N, black
- width 12 mm, thickness 0,50 mm
- black color
- strength 1300 N
- tube 400 mm, roll 3000 m
PP strap 12 x 0,55 mm, 200/190 - 3000 m, 1500 N, black
- width 12 mm, thickness 0,55 mm
- black color
- strength 1500 N
- tube 200 mm, roll 3000 m
PP strap 12 x 0,55 mm, 200/190 - 3000 m, 1500 N, white
- width 12 mm, thickness 0,55 mm
- natural color (white)
- strength 1500 N
- tube 200 mm, roll 3000 m
PP strap 12 x 0,70 mm, 200/190 - 2500 m, 2200 N, black
- width 12 mm, thickness 0,70 mm
- black color
- strength 2200 N
- tube 200 mm, roll 2500 m
PP strap 12 x 0,70 mm, 406/150 - 2200 m, 2000 N, black
- width 12 mm, thickness 0,70 mm
- black color
- strength 2000N
- tube 406 mm, roll 2200 m
PP strap 12 x 0,70 mm, 406/150 - 2000 m, 1850 N, black
- width 12 mm, thickness 0,70 mm
- black color
- strength 1850 N
- tube 406 mm, roll 2000 m
PET strap 12 x 0,60 mm, 406/145 - 2500 m, 2600 N, green
- width 12 mm, thickness 0,60 mm
- green color
- strength 2600 N
- tube 406 mm, roll 2500 m
