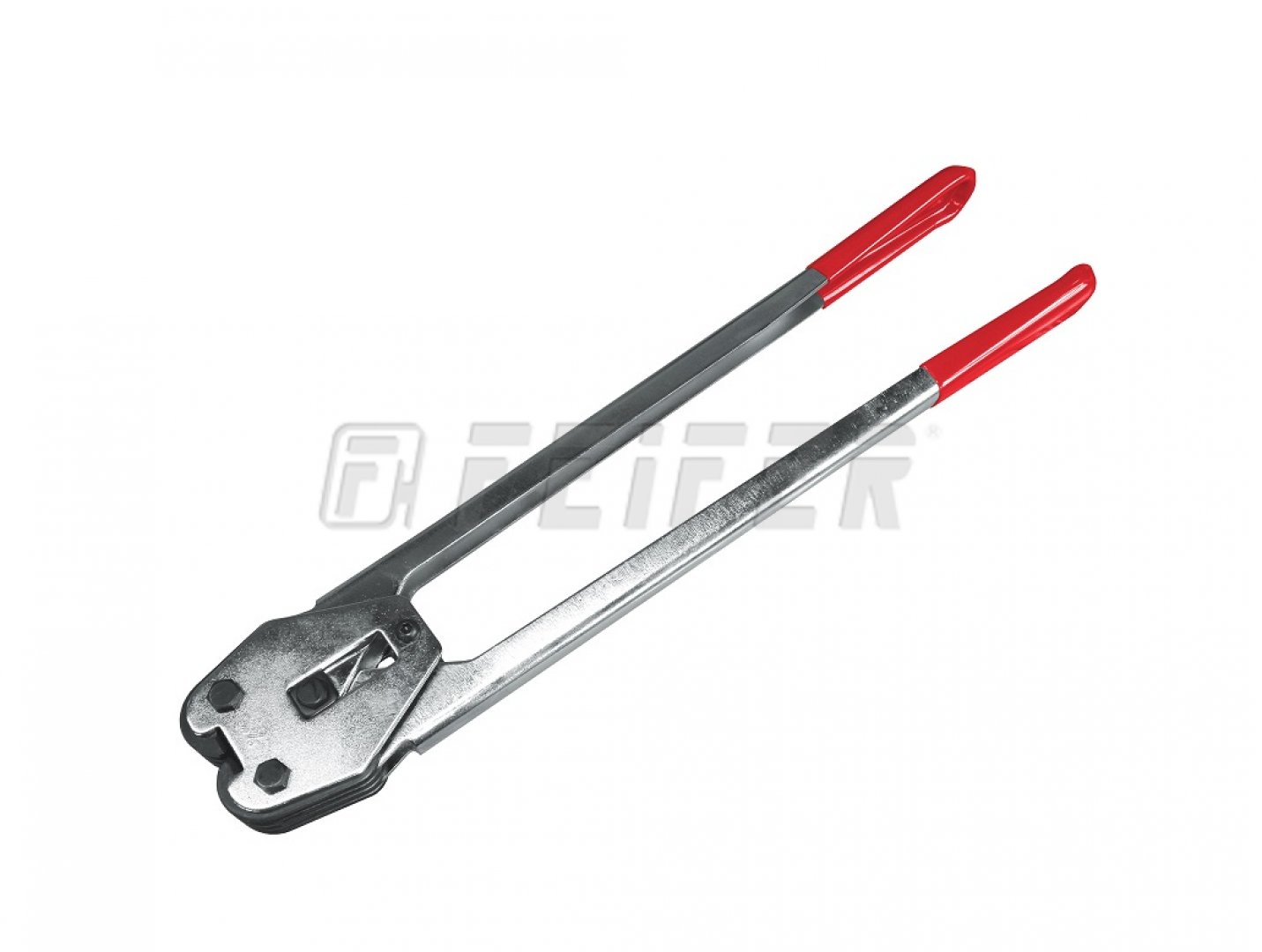

H-35/16(C) - PP strapping sealer for steel seals
H-35/16(C) - PP strapping sealer is used for transport strapping of cartons or lighter items on pallets. It is especially suitable for strapping in vertical position.
There is used polypropylene (PP) strap with width of 15(16) mm and with steel seal PP-16.
Strapping sealers are used only in combination with a suitable tensioner (e.g. type H-21R).
Technical parameters
Modification
Accessories
Packing material
Spare part
Inquiry
Technical parameters
| ordering code | 700 022687 |
| strap - material |
PP |
| strap width | 15 mm |
| strap thickness | 0,5 - 0,9 mm |
| weight | 1,1 kg |
| seal - type | PP-16 |
Standard modifications
H-35/12(C) - PP strapping sealer for steel seals
- strap width - 12 mm
- joint - steel seal PP-13
- for strapping of cartons on pallets
- using together with the tensioner (H-21R)
H-35/19(C) - PP strapping sealer for steel seals
- strap width - 19 mm
- joint - steel seal PP-19
- for strapping of cartons on pallets
- using together with the tensioner (H-21R)
Recommended accessories
KL-1 - steel strap cutter
- for steel straps
- max. strap size 32 x 1 mm
- robust cutter
- holder for precise cutting
H-21R(C) - tensioner for PP, PET straps
- strap width - 8 - 19 mm
- for steel, wire and plastic buckles
- for strapping timbers, pallets..
- suitable for vertical strapping
OP-6 - decoiler for PP straps
- inner diameter - 400 mm
- spring brake of strap
- extra robust construction
- for high frequency jobs
OP-6E - decoiler for PP straps
- inner diameter - 200 and 400 mm
- simple screw brake on axis
- for low frequency jobs
OP-6EB - decoiler for PP straps
- inner diameter - 200 and 400 mm
- spring brake of strap
- for low frequency jobs
OP-10EB - decoiler for PP straps
- inner diameter - 200 mm
- spring brake of strap
- for low frequency jobs
Strap lance
- max. strap width - 35 mm
- easy strap threading under pallet
- for plastic and textile strap
OP-8 - decoiler for PP, PET, oscillated steel straps
- strap width 10 - 20 mm
- inner diameter 400 - 406 mm
- oscillated winding
- friction brake,robust construction
Binding and packaging materials
Steel seals PP-16 (16 mm, 200400)
- seal width - 16 mm
- for PP strap
- packaging - 1600 pcs
PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200N, black
- width 15 mm, thickness 0,65 mm
- black color
- strength 2200 N
- tube 200, roll 2000 m
PP strap 15 x 0,65 mm, 200/190 - 2000 m, 2200 N, white
- width 15 mm, thickness 0,65 mm
- white, cross strapped
- strength 2200 N
- tube 200, roll 2000 m
PP strap 15 x 0,65 mm, 400/180 - 1500 m, 2200 N, black
- width 15 mm, thickness 0,65 mm
- black color
- strength 2200 N
- tube 400, roll 1500 m
PP strap 15 x 0,80 mm, 400/150 - 1500 m, 2700 N, black
- width 15 mm, thickness 0,80 mm
- black color
- strength 2700 N
- tube 400 mm, roll 1500 m
