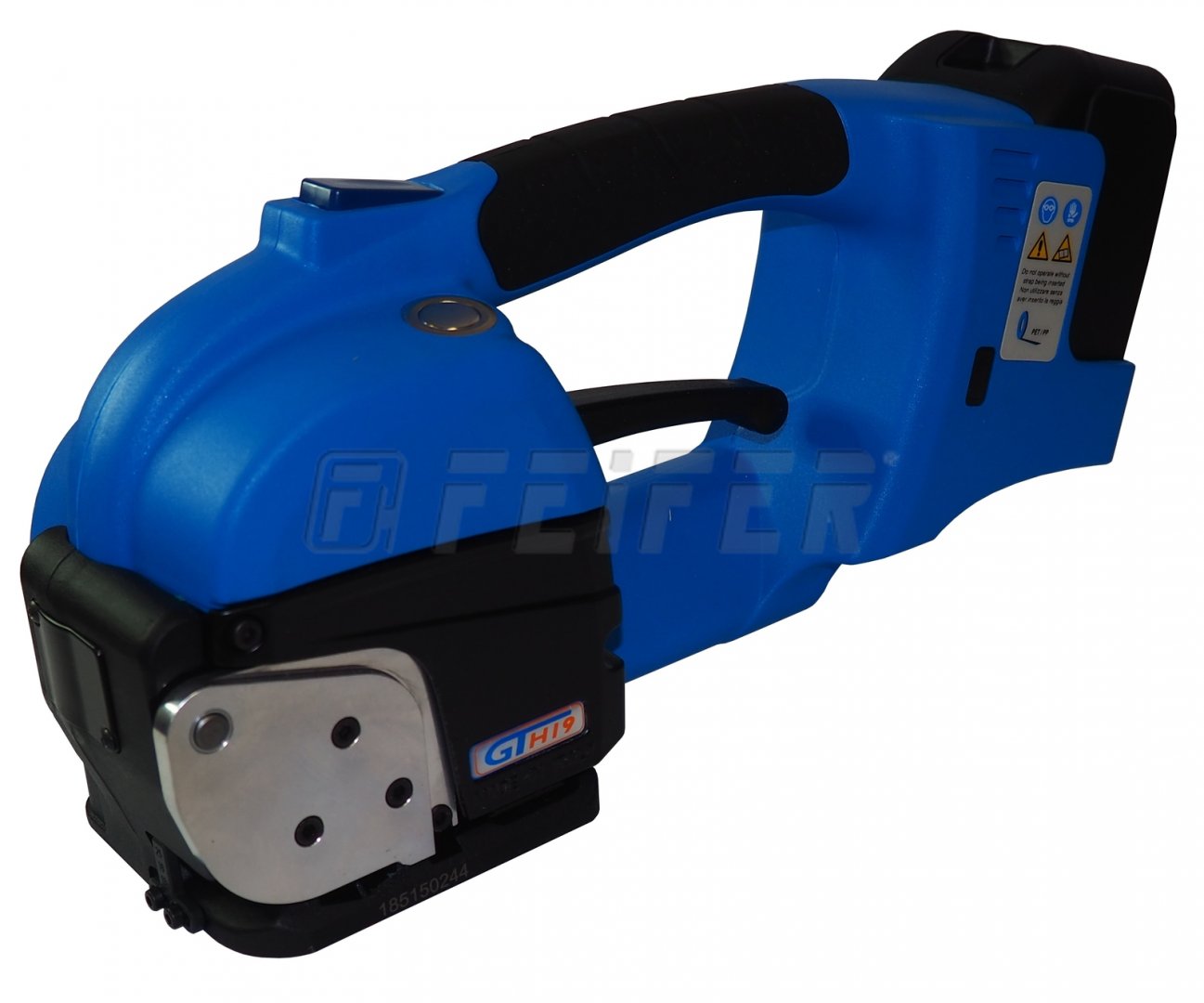

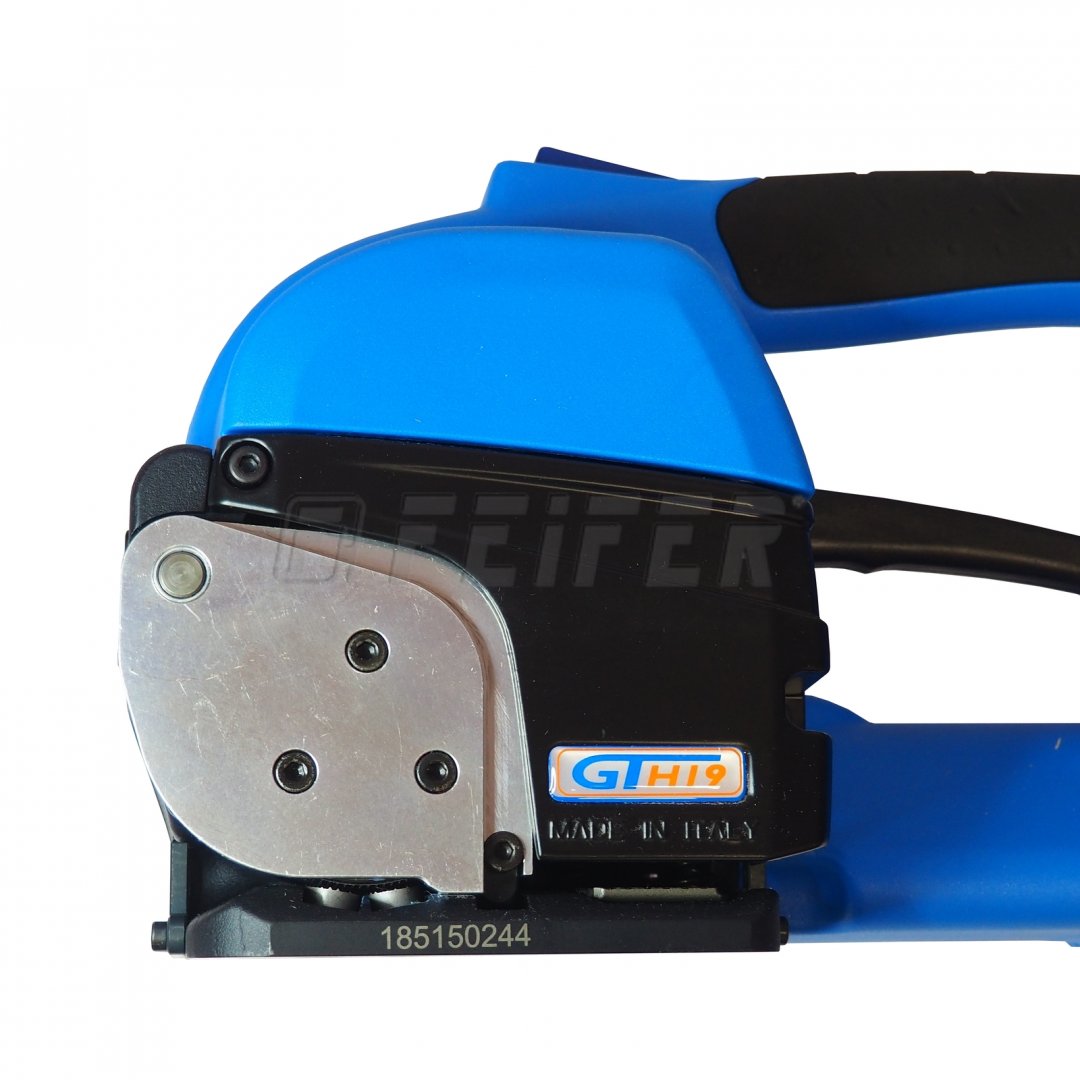

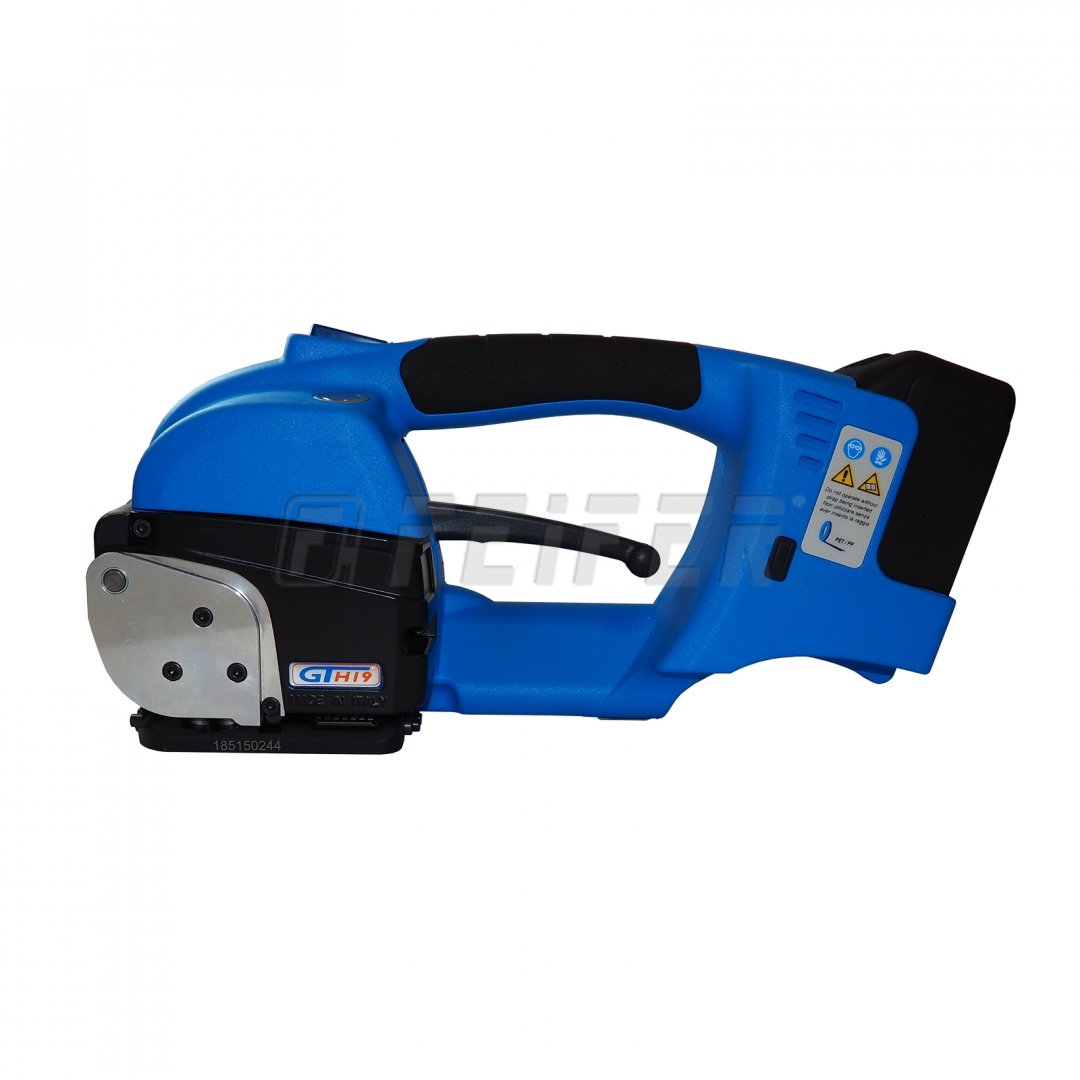

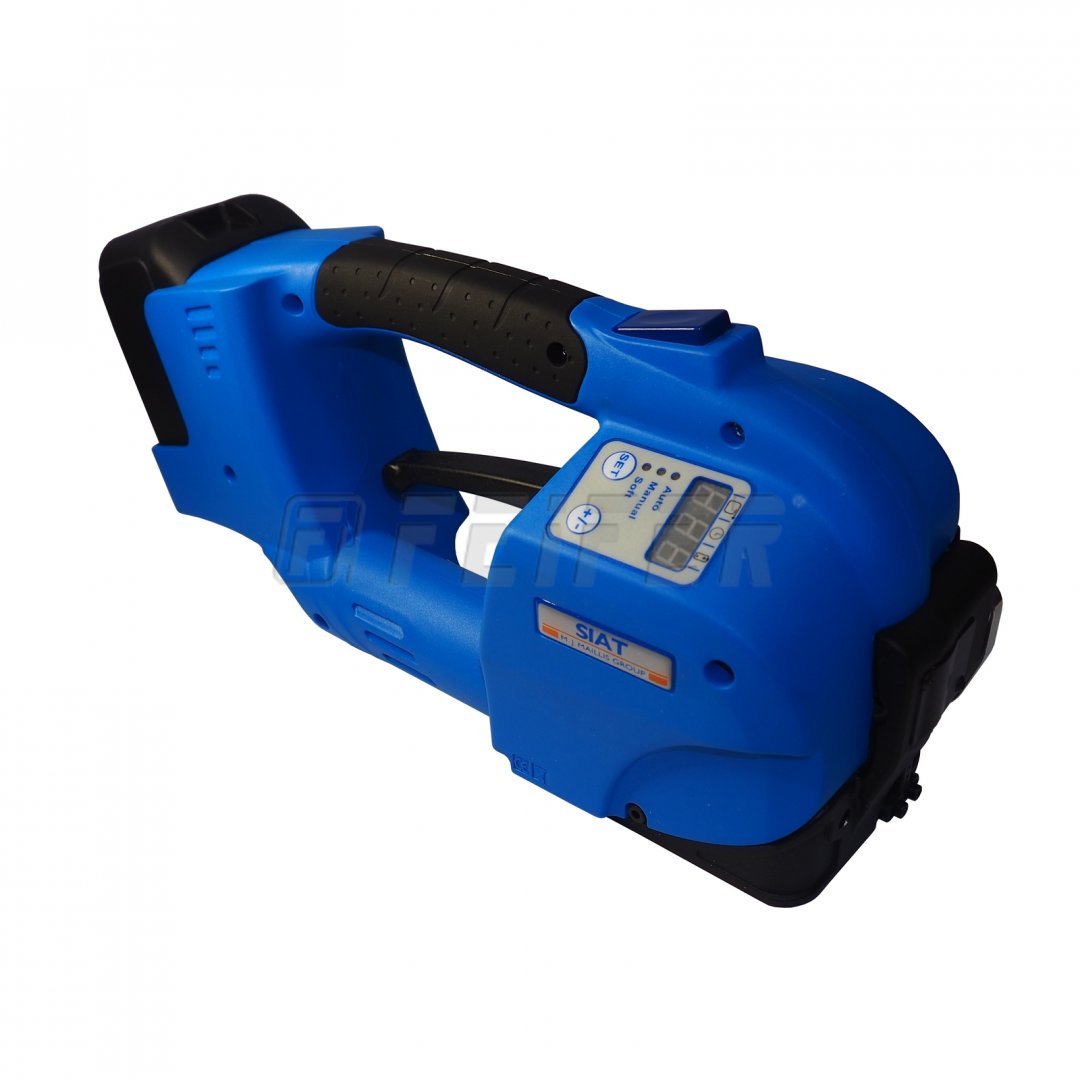

GT-H19 - battery strapping tool for PP, PET
Battery strapping hand tools GT-H19 that are suitable for pallets or groups of goods strapping with polypropylene (PP) or polyester (PET) strap without power supply needs. These models are equipped with automatic tightening and strap welding. These strapping tools can be used in three working modes:
- manual (possibility of finishing the tightening before the set tightening power is reached)
- semi-automatic (automatic reaching of the set tightening power, the welding of the strap is launched by operator)
- automatic (fully-automatic strap tightening with automatic welding)
- soft (special mode for soft products, sensitive strap tightening)
The working with these models is very simple. Strapping tools are adjustable easily, balanced perfectly and is possible to use them in vertical or horizontal strapping.
Technical parameters
Modification
Accessories
Packing material
Inquiry
Technical parameters
| ordering code | 700 023293 |
| strap - material |
PP PET |
| supply voltage | aku 18V |
| strap width | 16 - 19 mm |
| strap thickness | 0,8 - 1,3 mm |
| weight | 4 kg |
| sealing method | sealless |
| tightening power | 4500 N |
| qty of strapping cycles with 1 charge | 400 |
| battery charge time | 30 min. hour |
Standard modifications
GT-ONE - battery strapping tool for PP, PET
- strap width 10 - 16 mm
- 14,4V Li-Ion high-capacity battery
- tightening power up to 2750N
- heavy duty construction
Recommended accessories
KL-1 - steel strap cutter
- for steel straps
- max. strap size 32 x 1 mm
- robust cutter
- holder for precise cutting
OP-6 - decoiler for PP straps
- inner diameter - 400 mm
- spring brake of strap
- extra robust construction
- for high frequency jobs
OP-6E - decoiler for PP straps
- inner diameter - 200 and 400 mm
- simple screw brake on axis
- for low frequency jobs
OP-6EB - decoiler for PP straps
- inner diameter - 200 and 400 mm
- spring brake of strap
- for low frequency jobs
OP-10EB - decoiler for PP straps
- inner diameter - 200 mm
- spring brake of strap
- for low frequency jobs
Strap lance
- max. strap width - 35 mm
- easy strap threading under pallet
- for plastic and textile strap
ZP-5 - spring balancer for loading
- max. loading - 1-5 kg
- robust metal model (alloy)
- pre-tensioning by ergonom. rose
- safety device in case of break
OP-8 - decoiler for PP, PET, oscillated steel straps
- strap width 10 - 20 mm
- inner diameter 400 - 406 mm
- oscillated winding
- friction brake,robust construction
Binding and packaging materials
PP strap 15 x 0,80 mm, 400/150 - 1500 m, 2700 N, black
- width 15 mm, thickness 0,80 mm
- black color
- strength 2700 N
- tube 400 mm, roll 1500 m
PP strap 19 x 0,90 mm, 200/190 - 1200 m, 4050 N, black
- width 19 mm, thickness 0,90 mm
- black color
- strength 4050 N
- tube 200 mm, roll 1200 m
PET strap 16 x 1,00 mm, 406/145 - 1200 m, 5700 N, green, EMBOSS 15%
- width 16 mm, thickness 1,00 mm
- green color
- strength 5700 N
- tube 406 mm, roll 1200 m
PET strap 19 x 1,00 mm, 406/145 - 850 m, 8000 N, green, EMBOSS 20%
- width 19 mm, thickness 1,00 mm
- green color
- strength 8000 N
- tube 406 mm, roll 850 m
