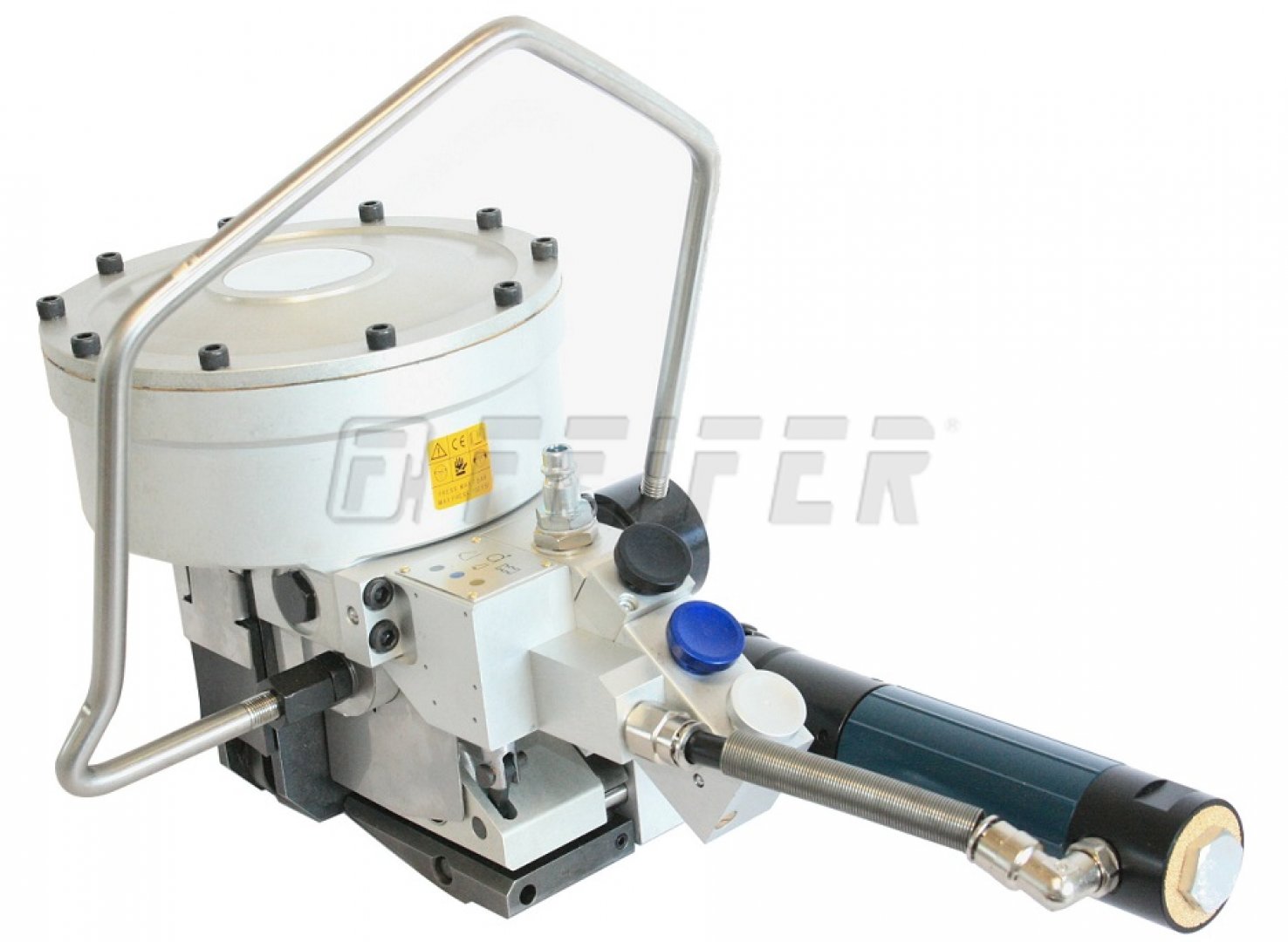

FP-25S pneumatic strapping tool
This pneumatic strapping tool FP-25S is designed for strapping round or irregularly shaped objects with steel strap. The joint is made by double notching the seal. The strapping tool works with strap and steel seal of the widht of 19, 25 or 32 mm according to the modification. Tightening power of this strapping tool is up to 8 000 N and strength of the joint reaches up to 15 000 N. The tool is equipped with pneumatic opening and closing of the sealing slot. This model is intended for the strap of the width of 25 mm.
Technical parameters
Modification
Accessories
Packing material
Inquiry
Technical parameters
| ordering code | 700 001117 |
| sealing method | seal type F |
| strap - material |
steel |
| strap width | 25 mm |
| strap thickness | 0,8 - 1,2 mm |
| dimension (l x w x h) | 420 x 260 x 190 mm |
| compressed air | 6 - 7 bar |
| air consumption/cycle | 9 l/sec. |
| tightening power | 9000 N |
| weight | 10,1 kg |
Standard modifications
FP-19S pneumatic strapping tool
- strap width - 19 mm
- sealing method - seal type F
- double notching of the seal
- max. strength of joint 10000N
FP-32S pneumatic strapping tool
- strap width - 32 mm
- sealing method - seal type F
- double notching of the seal
- max. strength of joint 15000N
Recommended accessories
KL-1 - steel strap cutter
- for steel straps
- max. strap size 32 x 1 mm
- robust cutter
- holder for precise cutting
KL-2 - heavy duty steel strap cutter
- for steel straps
- max. strap size 50 x 1,2 mm
- robust lever cutter
OP-28 decoiler for ribbon steel straps
- strap width - 25 - 32 mm
- unlimited inner diameter
- max. outer diameter - 700 mm
- robust construction
EW-15 mod. 9340 - spring balancer for loading
- max. loading - 10 - 14 kg
- robust metal model
- pre-tensioning by screw in axis
- safety eye for securing
Binding and packaging materials
Steel seals F-25 (25 mm, 207300)
- seal width - 25 mm
- for steel strap
- packaging - 450 pcs
