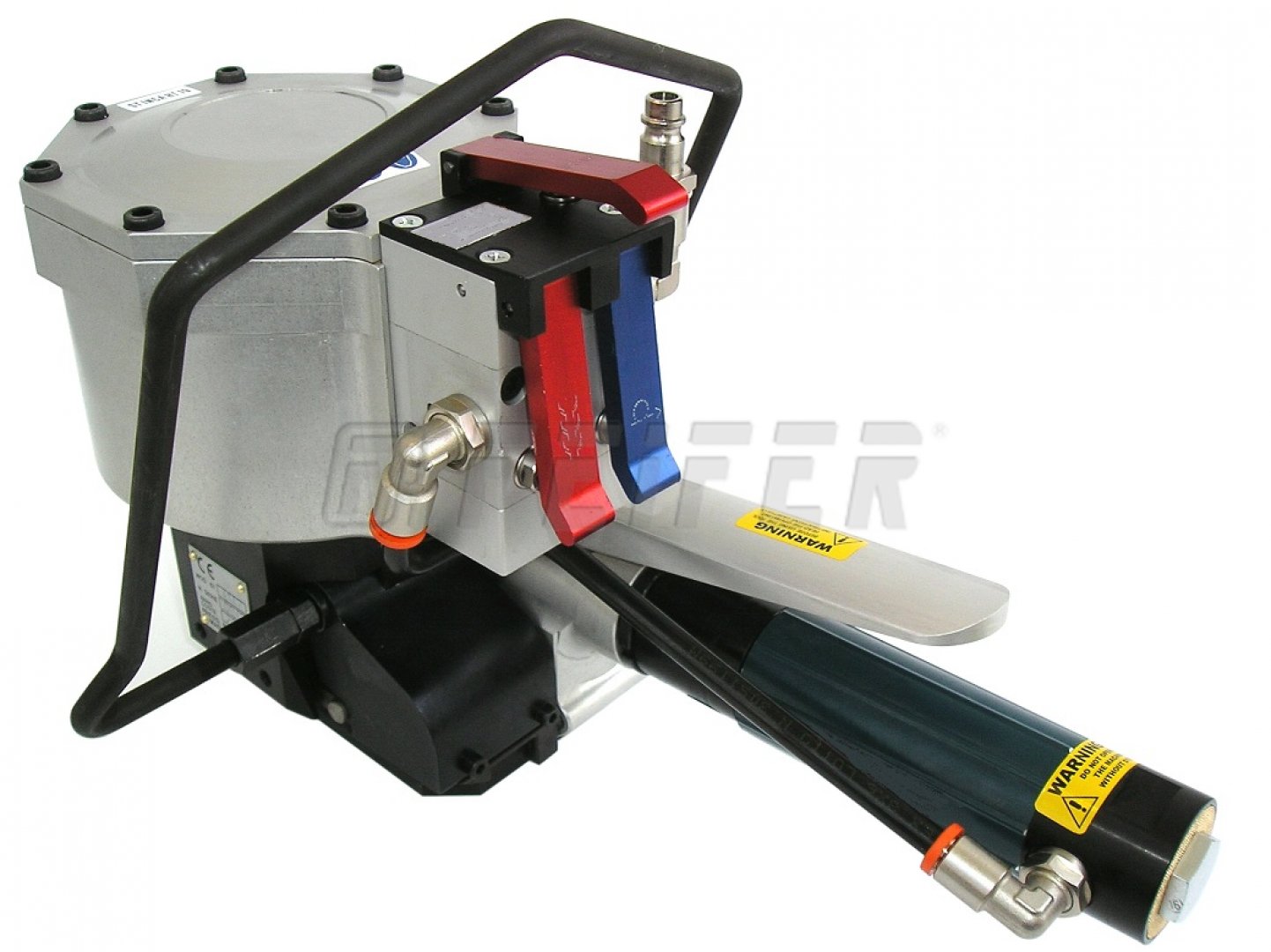

FP-13 INCA - pneumatic sealless steel strapping tool

This pneumatic sealless strapping tool FP-13 INCA for steel strap is designed for medium or high frequency strapping jobs and is intended for strapping flat objects e.g. boxes, bricks, timber products, goods stacked on pallets, etc. with steel strap without usage of steel seal. The joint is made by punching straps. FP-INCA works with the strap of the width of 13, 16 or 19 mm according to modification.

Among main advantages of this strapping tool belong:

  • long lifetime
  • high speed of strapping
  • automatic tightening and punching the strap

The strapping tool is standardly equipped with extra strong tightening wheel and suspending holder for hanging on the balancer. This model is inteded the strap of the width of 13 mm.

Technical parameters
Modification
Accessories
Packing material
Inquiry

Technical parameters

ordering code 700 008243
strap - material steel
sealing method sealless
strap width 13 mm
strap thickness 0,5 - 0,8 mm
weight 7,1 kg
dimension (l x w x h) 370 x 135 x 180 mm
compressed air 6 - 7 bar
air consumption/cycle 9 l/sec.
tightening power 3000 N

Standard modifications

FP-16 INCA - pneumatic sealless steel strapping tool

FP-16 INCA - pneumatic sealless steel strapping tool
  • strap width - 16 mm
  • sealing method - sealless
  • pneumatic tightening/punching
  • extra strong tightening wheel

FP-19 INCA pneumatic sealless strapping tool

FP-19 INCA pneumatic sealless strapping tool
  • strap width - 19 mm
  • sealing method - sealless
  • pneumatic tightening/punching
  • extra strong tightening wheel

Recommended accessories

ZP-9 - spring balancer for loading

ZP-9  - spring balancer for loading
  • max. loading - 5 - 9 kg
  • robust metal model (alloy)
  • pre-tensioning by ergonom. rose
  • safety device in case of break

KL-1 - steel strap cutter

KL-1 - steel strap cutter
  • for steel straps
  • max. strap size 32 x 1 mm
  • robust cutter
  • holder for precise cutting

OP-5 - decoiler for ribbon steel straps

OP-5 - decoiler for ribbon steel straps
  • strap width 13-20 mm
  • spring brake of strap
  • inner diameter 260-310 mm
  • robust construction

OP-7 - decoiler for oscillated steel straps

OP-7 - decoiler for oscillated steel straps
  • strap width - 13 - 20 mm
  • spring brake of strap
  • for oscillated winding
  • robust construction

OP-21 - decoiler for ribbon steel straps

OP-21 - decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 610 mm
  • unsuitable for low quality straps

OP-24 - decoiler for ribbon steel straps

OP-24 - decoiler for ribbon steel straps
  • strap width - 10 - 13 mm
  • unlimited inner diameter
  • max. outer diameter - 700 mm
  • unsuitable for low quality straps

OP-26 decoiler for ribbon steel straps

OP-26 decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 700 mm
  • unsuitable for low quality straps

OP-26E decoiler for ribbon steel straps

OP-26E decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 700 mm
  • for low frequency jobs

OP-26W decoiler for ribbon steel straps

OP-26W decoiler for ribbon steel straps
  • strap width - 13 - 20 mm
  • unlimited inner diameter
  • max. outer diameter - 790 mm
  • unsuitable for low quality straps

OP-8 - decoiler for PP, PET, oscillated steel straps

OP-8 - decoiler for PP, PET, oscillated steel straps
  • strap width 10 - 20 mm
  • inner diameter 400 - 406 mm
  • oscillated winding
  • friction brake,robust construction

Binding and packaging materials

13 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)

13 x 0,5 mm - steel strap (blank, metallic lustre, ribbon)
  • width 13 mm, thickness 0,5 mm
  • strength 4485 N
  • roll weight approx. 17 kgs
  • inside diam. 300 mm

13 x 0,5 mm - steel strap (zinc coated, ribbon)

13 x 0,5 mm - steel strap (zinc coated, ribbon)
  • width 13 mm, thickness 0,5 mm
  • strength 4388 N
  • roll weight approx. 20 kgs
  • inside diam. 286 mm
