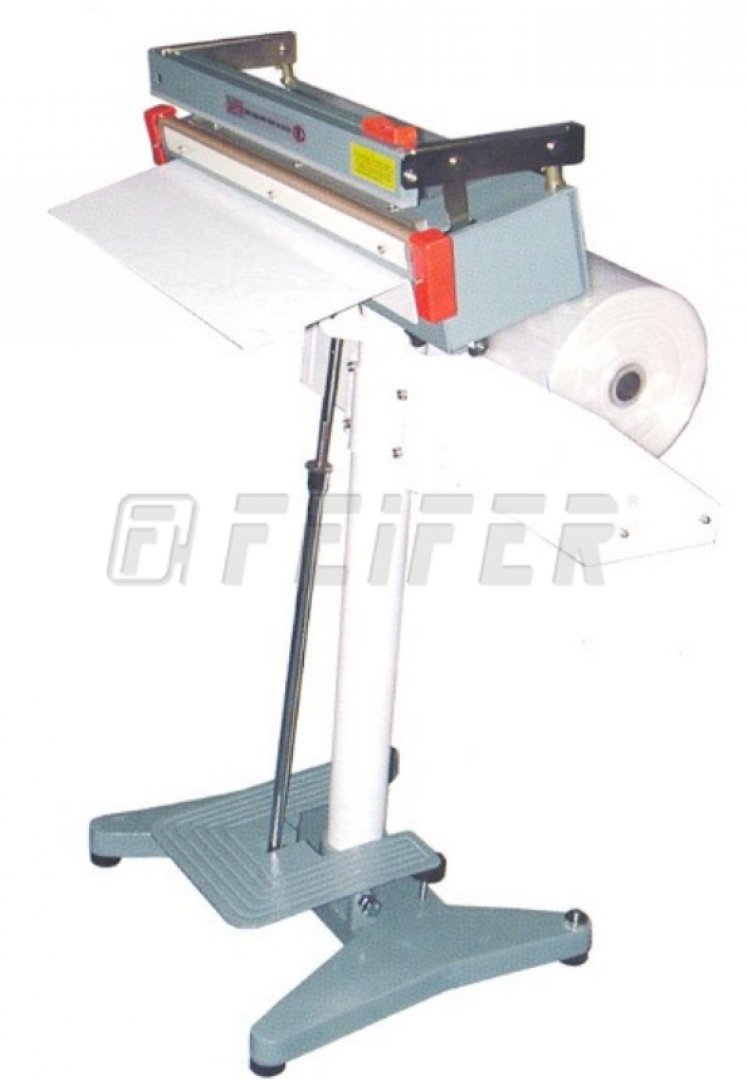

FC-605 - impulse sealer with built-in-blade
Heavy-duty foot-controlled impulse sealers with built-in cutting blade. Seal length is 600 mm, seal width is 5 mm. These models are designed for producing and closing large heavy bags up to the thickness of 0,2 mm. These equipments feature with high safety of an operator (the cutting blade is pushed out after pressing the upper sealing arm towards the lower sealing arm). Foil is cut approx. 6 mm behind the performed seal.
These sealers are standardly equipped with thermistor (thermal protection of transformer) and with built-in foil decoiler. Sealing angle is adjustable up to 45 degrees. It is possible to buy height extender as a optional equipment for these sealers.
Technical parameters
Modification
Inquiry
Technical parameters
ordering code | 700 007826 |
max. sealing length | 600 mm |
sealing width | 5 mm |
max. film thickness | 200 µm |
power input | 1,5 kW |
built-in blade | yes |
weight | 33 kg |
Standard modifications
FC-600 - impulse sealer with built-in-blade
- sealing length/width 600/2 mm
- heavy-duty foot controlled type
- for production and closing bags
FI-600 - impulse sealer
- sealing length/width - 600/2 mm
- heavy-duty foot controlled type
- built-in thermistor
FI-605 - impulse sealer
- sealing length/width 600/5 mm
- heavy-duty foot controlled type
- built-in thermistor
FI-6010 - impulse sealer
- sealing length/width 600/10 mm
- heavy-duty foot controlled type
- built-in thermistor
FI-805 - impulse sealer
- sealing length/width 800/5 mm
- heavy-duty foot controlled type
- built-in thermistor
