Conveyor rollers

Types of conveyor rollers:

  • Type 1:
    obrazek2161
    • plastic handling surface
    • ball bearing with a flexible shaft with diameter 8 mm
      • plastic rollers with loading capacity up to 7 kgs


  • ​Type 2:
    • plastic or steel handling surface
    • ball bearings
    • bearing plastic heads
      • plastic rollers with loading capacity up to 100 kgs with a flexible shaft
      • steel rollers with loading capacity up to 100 kgs with a flexible shaft


  • ​Type 3:
    • plastic or steel handling urface
    • ball bearings
    • bearing plastic heads
      • plastic rollers with loading capacity up to 100 kgs with a screw axis
      • steel rollers with loading capacity up to 100 kgs with a screw axis


  • ​Type 4:
    • steel handling surface
    • there are placed end of axis in plastic sleeves to eliminate surges to the frame of the conveyors
    • ball bearings
    • bearing plastic heads
      • plastic rollers with loading capacity up to 100 kgs with housings
      • steel rollers with loading capacity up to 100 kgs with housings


  • ​​Type 5:
    • steel handling surface
    • ball bearings
    • bearing plastic heads
      • steel rollers with loading capacity up to 250 kgs with an internal thread​​

​​​

obrazek2162

Special versions:

  • carrying rollers with stainless steel bearings
  • nonstandard lenghts
  • carrying rollers driven version with sprocket
  • forehead bearing steel
  • another embodiment according to the specific requirement



Basic sorting:

  • with a spring axis
  • with a screw axis

  • with plastic housings
  • with internal thread



Explanatory notes:

A) clamping lenght | B) lenght of the case | C) shaft diameter | D) rollers diameter


More information

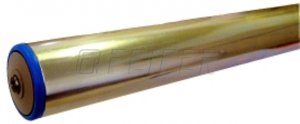

Steel roller type 5, diam. 80, axis 20 mm/outer M10, l=200 mm, 250 kg

Steel roller type 5, diam. 80, axis 20 mm/outer M10, l=200 mm, 250 kg
  • roller diam. 80 mm
  • shaft diam. 20 mm
  • lenght = 200 mm
  • load. capacity 250 kg

Steel roller type 5, diam. 80, axis 20 mm/outer M10, l=300 mm, 250 kg

Steel roller type 5, diam. 80, axis 20 mm/outer M10, l=300 mm, 250 kg
  • roller diam. 80 mm
  • shaft diam. 20 mm
  • lenght = 300 mm
  • load. capacity 250 kg

Steel roller type 5, diam. 80, axis 20 mm/outer M10, l=400 mm, 250 kg

Steel roller type 5, diam. 80, axis 20 mm/outer M10, l=400 mm, 250 kg
  • roller diam. 80 mm
  • shaft diam. 20 mm
  • lenght = 400 mm
  • load. capacity 250 kg

Steel roller type 5, diam. 80, axis 20 mm/outer M10, l=500 mm, 250 kg

Steel roller type 5, diam. 80, axis 20 mm/outer M10, l=500 mm, 250 kg
  • roller diam. 80 mm
  • shaft diam. 20 mm
  • lenght = 500 mm
  • load. capacity 250 kg

Steel roller type 5, diam. 80, axis 20 mm/outer M10, l=600 mm, 250 kg

Steel roller type 5, diam. 80, axis 20 mm/outer M10, l=600 mm, 250 kg
  • roller diam. 80 mm
  • shaft diam. 20 mm
  • lenght = 600 mm
  • load. capacity 250 kg

Steel roller type 5, diam. 80, axis 20 mm/outer M10, l=800 mm, 200 kg

Steel roller type 5, diam. 80, axis 20 mm/outer M10, l=800 mm, 200 kg
  • roller diam. 80 mm
  • shaft diam. 20 mm
  • lenght = 800 mm
  • load. capacity 200 kg

Steel roller type 5, diam. 80, axis 20 mm/outer M10, l=1000 mm, 150 kg

Steel roller type 5, diam. 80, axis 20 mm/outer M10, l=1000 mm, 150 kg
  • roller diam. 80 mm
  • shaft diam. 20 mm
  • lenght = 1000 mm
  • load. capacity 150 kg
